80000 Litre Steel Bunded Diesel Dispensing Tank

Tuffa 80000L Steel Bunded Diesel Dispensing Tank Tank Compliance

Compliant with current requirements for commercial diesel storage and dispensing - please see attached PDF for further details

Tuffa 80000L Steel Bunded Diesel Dispensing Tank Downloadable Documents

Guide To Tuffa Diesel Dispensing Tanks & Compliance

80000SBFS Data Sheet

Tecalemit ECO HDA Installation Sheet

High Flow Panther 72 Pump Data Sheet

C2020 Data Sheet

C2020 Set Up Guide

Tecalemit HDA Eco Manual

Why Choose A Tuffa Steel Diesel Tank ?

Tecalemit Horn Data Sheet

Tuffa 80000L Steel Bunded Diesel Dispensing Tank Video

Tuffa 80000L Steel Bunded Diesel Dispensing Tank Description

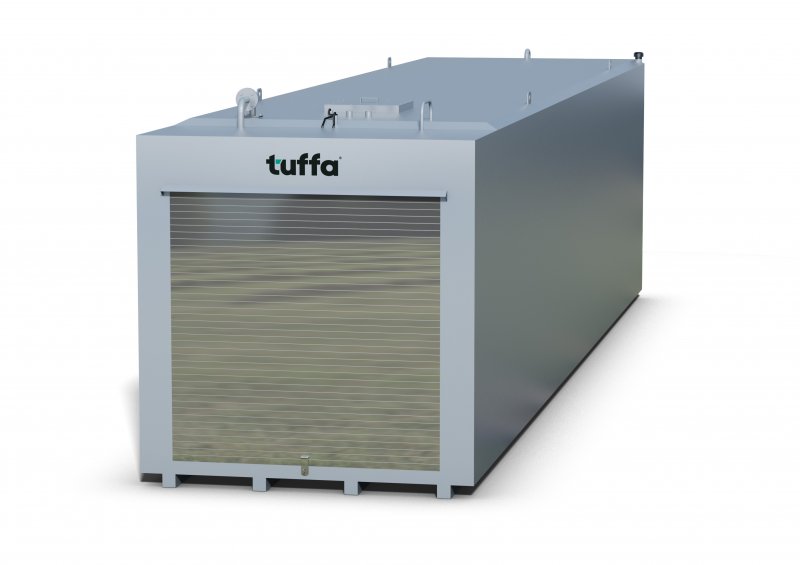

80000L Bunded Steel Diesel Dispensing Tank

The 80000 litre (17600 gallons) steel bunded diesel dispensing tank is complete with an inner tank and bund for ultimate protection against leaks and spillages.

These tanks are manufactured in a strong mild steel which is extremely durable, weather-resistant with high impact strength. When properly installed, used and maintained these tanks have a life expectancy in excess of 30 years and come with a 10 year warranty on the tank when registered.

As standard, the 80000 litre steel bunded diesel dispensing tank is fitted with premium ancillary equipment housed within a high security cabinet with roller shutter door. Because all of our steel tanks are hand-fabricated to order, they are very customizable and come with a wide range of options including a fuel management system, high flow rate pump and hose reel. Please ask for details.

This tank is compatible with red or white diesel and HVO100 or HVO diesel blends

This tank is ideal for domestic and non-domestic purposes.

Weather resistant, offering reliable storage for 30 years when maintained appropriately.
4/5mm steel
10 year warranty when registered
1m full end cabinet with lockable roller shutter door
3″ fill point c/w cap & chain
Vent
External pump (230v)
C2020 contents gauge with bund alarm (230v)
Pulsed output flow meter
6m delivery hose & automatic nozzle
Nozzle holster
10 micron water & particulate filter
Overfill prevention valve
2 x 2" spare sockets
Channel runners
4 x lifting eyes (lift only when empty)
Painted in RAL7001 Gray
Height measurement includes the runners
HVO Compatible

Available with optional upgrades:

Fuel management
High flow pump
10m hose reel
Various configurations available

Please note that images 2,3,4 and 5 are for illustration purposes only.

Tuffa 80000L Steel Bunded Diesel Dispensing Tank Specification

Product Code: TF
Delivery Options: Customer Offloading
Guarantee: 10 Year Guarantee - Tank only
Made From: Steel
Suitable For Fuel: Diesel, Gas Oil, HVO
Tank Shape: Horizontal
Tank Type: Bunded
Footprint (L+W): 12000mm + 3000mm

Tuffa 80000L Steel Bunded Diesel Dispensing Tank Delivery Information

Tanks:

The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page. Standard tank deliveries are "kerbside" which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.

Tanks Over 2500L – Articulated Lorry – Customer Offload:

These tanks will be delivered on an articulated vehicle (approximately 16.5m long x 2.6m wide x 3m high) which has no offloading on board, it is the customer's responsibility to offload the tank, which may require a telehandler / forklift. Curtain sided vehicles are also used, so please note that if there are obstacles or hanging branches on the road to the delivery site etc, the driver may refuse to drive the vehicle to the customer's location due to the possibility of damaging the vehicle. Please let us know if there are any obstructions before delivery, so we can arrange alternative transport.

18 Tonne Tail Lift HGV

This vehicle is the size of the largest bin lorries (for comparison) and is approximately 8.2m long x 2.6m wide x 4m high, often curtain sided so please note that if there are hanging branches etc, these vehicles will not attempt to drive down due to the possibility of damaging the vehicle and so it is recommended that a smaller vehicle is requested. Tanks will be lowered to the ground but not positioned as this is a kerbside delivery. If a smaller vehicle is required, please email us at sales@fueltankshop.co.uk quoting your order number and name.

HIAB Delivery

HIAB delivery is available but must be requested and there will be an additional cost for this service. If a HIAB delivery is required, please email us at sales@fueltankshop.co.uk quoting your order number and name, and we will come back to you with a price for this service.

Accessories:

Most accessories will be delivered within 1-3 working days (certain products and postcodes may take longer, please check the product page for update to date information). If you require them quicker, we can on occasions offer a next day service (please contact us to discuss). If the item(s) are out of stock, we will advise you of the expected lead time, and you will of course have the opportunity to cancel with a full refund.

Tuffa 80000L Steel Bunded Diesel Dispensing Tank Returns Information

Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to section 7. **

All Items must be returned unused, refunds cannot be issued for used or previously installed items.

Please be aware that returning a tank can be complicated and expensive, so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).

If you wish to return goods, please complete the form on this page to provide further information.

Once your request is approved, a valid Returns Authorisation Number (RAN) will be issued to initiate the returns process along with information on how & where to return your order along with any costs involved.

Please DO NOT return any goods without this authorisation. Goods cannot be accepted without this.

Returns are not accepted at our Minehead Office, please wait until we contact you before returning any goods.

View Fuel Tank Shop return policy now.
