Tigerloop Original De-Aerator - External Fitting **Multibuy offer**
Product Ref: TL6000x5
Approx 3-5 Days
Home Delivery
United Kingdom mainland delivery from FREE ex VAT
FREE Delivery to Mainland UK - Postcode Exclusions Apply
login to saveTigerloop Original De-Aerator - External Fitting **Multibuy offer** Description

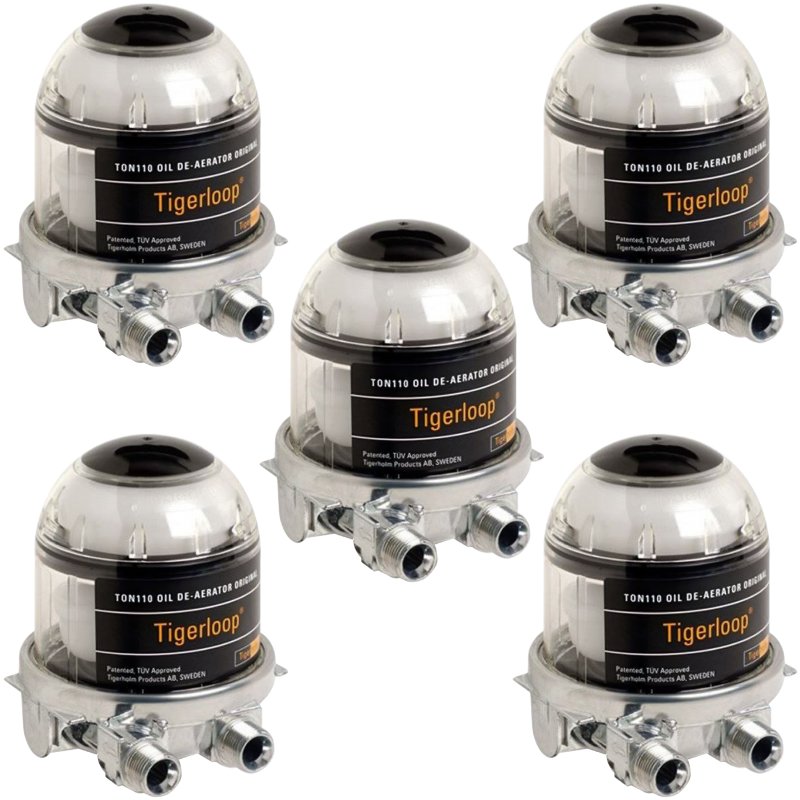

Tigerloop Original De-Aerator - TON110i - Pack of 5
The Tiger Loop removes air from heating oil and is fitted on the outside wall of the property, between the tank and the pressure jet burner. This allows the tank to be installed lower than the burner. The Tiger Loop can draw fuel from up to 30m away with a 10mm fuel line. Suitable for oil and kerosene. 1/4" F BSP.
Included:
- Tigerloop Wall Bracket
Advantages:
- Cleaner burn saves fuel
- Cleaner burn saves on maintenance
- Cleaner burns save money
- Cleaner burn saves on breakdowns
- Pre-heating helps burn in cold weather
Technical Data
- Nozzle Capacity (l/h) - 110
- Oil Flow (l/h) - 230
- Max return oil (l/h) - 120
- De-aerating capacity (l/h) - 8
- Max operating temp - 60ºc
- Max/Min Pressure - +0.5/-0.6
- Inlet/Outlet - 1/4" F BSP
- Kerosene and oil
The new and improved original and third generation automatic oil de-aerator pre-heats the oil to at least room temperature by absorbing the heat from the boiler room and friction heat from the pump. Fitting requires three 1/4" BSPF fittings.
The Tigerloop is a product designed to meet increasing demands on energy savings, environmental and operational safety. Environmental regulations and changes in oil qualities continue to place high demands not only on material selection, but also on clean and air-free oil for optimal combustion with minimal discharge of harmful particles. Tigerloop makes it possible to use a one-pipe system in all types of heating installations, thus ensuring the most environmentally safe method for transporting oil from the oil tank to the burner.
Tigerloop combines the advantages of the oil pump of a two-pipe system with the advantages from the oil tank of a one-pipe system. When using a one-pipe system and Tigerloop, only the amount of oil used by the oil burner is drawn from the oil tank. As the oil flow decreases, so does the amount of dirt particles transported from the tank. This results in cleaner combustion. The pressurized return line to the oil tank is removed, thus eliminating the risk for hazardous leakage. A large amount of air bubbles are released when oil is drawn from the oil tank to the oil burner. These air bubbles cause breakdowns, increased soot and excessive wear on the oil pump. By functioning as an automatic deaerator, Tigerloop eliminates all such problems.
Optional Extras:
- Tigerloop Fitting Kit (2x Steel braided lines and fittings) - required for new installation
Please Note - image shown is generic image
Product supplied with 1/4" female threads
Tigerloop Original De-Aerator - External Fitting **Multibuy offer** Specification
- Product Code: KSP
- Suitable For Fuel: Gas Oil, Heating Oil
Tigerloop Original De-Aerator - External Fitting **Multibuy offer** Delivery Information
Tanks:
The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page. Standard tank deliveries are "kerbside" which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.
Tanks Over 2500L – Articulated Lorry – Customer Offload:
These tanks will be delivered on an articulated vehicle (approximately 16.5m long x 2.6m wide x 3m high) which has no offloading on board, it is the customer's responsibility to offload the tank, which may require a telehandler / forklift. Curtain sided vehicles are also used, so please note that if there are obstacles or hanging branches on the road to the delivery site etc, the driver may refuse to drive the vehicle to the customer's location due to the possibility of damaging the vehicle. Please let us know if there are any obstructions before delivery, so we can arrange alternative transport.
18 Tonne Tail Lift HGV
This vehicle is the size of the largest bin lorries (for comparison) and is approximately 8.2m long x 2.6m wide x 4m high, often curtain sided so please note that if there are hanging branches etc, these vehicles will not attempt to drive down due to the possibility of damaging the vehicle and so it is recommended that a smaller vehicle is requested. Tanks will be lowered to the ground but not positioned as this is a kerbside delivery. If a smaller vehicle is required, please email us at sales@fueltankshop.co.uk quoting your order number and name.
HIAB Delivery
HIAB delivery is available but must be requested and there will be an additional cost for this service. If a HIAB delivery is required, please email us at sales@fueltankshop.co.uk quoting your order number and name, and we will come back to you with a price for this service.
Accessories:
Most accessories will be delivered within 1-3 working days (certain products and postcodes may take longer, please check the product page for update to date information). If you require them quicker, we can on occasions offer a next day service (please contact us to discuss). If the item(s) are out of stock, we will advise you of the expected lead time, and you will of course have the opportunity to cancel with a full refund.
Tigerloop Original De-Aerator - External Fitting **Multibuy offer** Returns Information
Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to section 7. **
All Items must be returned unused, refunds cannot be issued for used or previously installed items.
Please be aware that returning a tank can be complicated and expensive, so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).
If you wish to return goods, please complete the form on this page to provide further information.
Once your request is approved, a valid Returns Authorisation Number (RAN) will be issued to initiate the returns process along with information on how & where to return your order along with any costs involved.
Please DO NOT return any goods without this authorisation. Goods cannot be accepted without this.
Returns are not accepted at our Minehead Office, please wait until we contact you before returning any goods.
