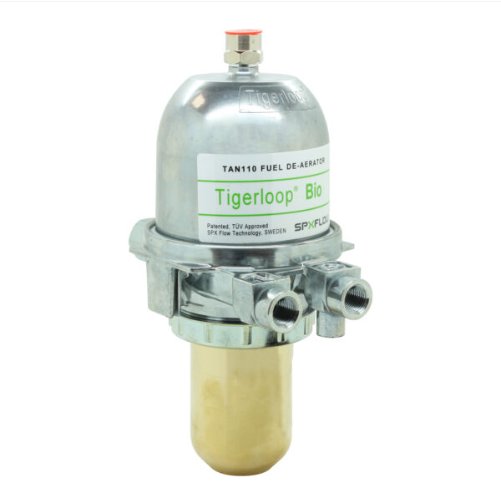

Tigerloop Bio Combi De-Aerator - Internal Fitting
Product Ref: TL7000-C/ TLC7000-CG
Approx 3-5 Days
Home Delivery
United Kingdom mainland delivery from £9.95 ex VAT
Parcel Delivery (Highlands & Islands are charged at a higher fee than standard)
You may also need:
login to saveTigerloop Bio Combi De-Aerator - Internal Fitting Description
Tigerloop Combi Bio De-Aerator
The Tiger Loop Combi Bio removes air from heating oil and can be fitted internally. Not only compatible with standard mineral fuels like kerosene and gas oil but also bio-liquids and bio-liquid/mineral fuel blends. With integrated disposable 15 Micron Particulate oil filter. Suitable for oil, kerosene and biofuel. 1/4" F BSP.
Included:
- Tigerloop Wall Bracket
Advantages:
- Cleaner burn saves fuel
- Cleaner burn saves on maintenance
- Cleaner burns save money
- Cleaner burn saves on breakdowns
- Pre-heating helps burn in cold weather
Specification Data
- Nozzle Capacity (l/h) - 110
- Oil Flow (l/h) - 230
- Max return oil (l/h) - 120
- De-aerating capacity (l/h) - 8
- Max operating temp - 70ºc
- Max/Min Pressure - +0.5/-0.6
- 15 micron filter
- Inlet/Outlet - 1/4" F BSP
- Kerosene, oil and biofuel
The Bio Tigerloop automatically and continuously de-aerates the fuel, venting to atmosphere. This is the only way to prevent air from going to the burner. This proven method of de-aeration ensures the best possible efficiency for the heating system. The only additional requirement for indoor installation is to connect a copper pipe to the top of the Tigerloop, the de-aerated gases can be piped to discharge externally.
The Tigerloop Combi Bio offers several advantages thanks to the integrated filter. It allows the possibility of choosing different filter inserts depending on the need. The installation is done with fewer connections, simplifying work and reducing the risk for leakage.
The Tigerloop Bio is designed for use with bio liquid fuels produced to BS EN 14213 and fuel blends up to B100.
Fitting requires three 1/4" BSPF fittings.
The Tigerloop is a product designed to meet increasing demands on energy savings, environmental and operational safety. Environmental regulations and changes in oil qualities continue to place high demands not only on material selection, but also on clean and air-free oil for optimal combustion with minimal discharge of harmful particles. Tigerloop makes it possible to use a one-pipe system in all types of heating installations, thus ensuring the most environmentally safe method for transporting oil from the oil tank to the burner.
Tigerloop combines the advantages of the oil pump of a two-pipe system with the advantages from the oil tank of a one-pipe system. When using a one-pipe system and Tigerloop, only the amount of oil used by the oil burner is drawn from the oil tank. As the oil flow decreases, so does the amount of dirt particles transported from the tank. This results in cleaner combustion. The pressurized return line to the oil tank is removed, thus eliminating the risk for hazardous leakage. A large amount of air bubbles are released when oil is drawn from the oil tank to the oil burner. These air bubbles cause breakdowns, increased soot and excessive wear on the oil pump. By functioning as an automatic deaerator, Tigerloop eliminates all such problems.
Optional Extras:
- Tigerloop Fitting Kit (2x Steel braided lines and fittings) - required for new installation
Tigerloop Bio Combi De-Aerator - Internal Fitting Specification
- Product Code: ATK
- Suitable For Fuel: Gas Oil, Heating Oil, Bio Fuel
Tigerloop Bio Combi De-Aerator - Internal Fitting Delivery Information
Tanks:
The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page. Standard tank deliveries are "kerbside" which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.
Tanks Over 2500L – Articulated Lorry – Customer Offload:
These tanks will be delivered on an articulated vehicle (approximately 16.5m long x 2.6m wide x 3m high) which has no offloading on board, it is the customer's responsibility to offload the tank, which may require a telehandler / forklift. Curtain sided vehicles are also used, so please note that if there are obstacles or hanging branches on the road to the delivery site etc, the driver may refuse to drive the vehicle to the customer's location due to the possibility of damaging the vehicle. Please let us know if there are any obstructions before delivery, so we can arrange alternative transport.
18 Tonne Tail Lift HGV
This vehicle is the size of the largest bin lorries (for comparison) and is approximately 8.2m long x 2.6m wide x 4m high, often curtain sided so please note that if there are hanging branches etc, these vehicles will not attempt to drive down due to the possibility of damaging the vehicle and so it is recommended that a smaller vehicle is requested. Tanks will be lowered to the ground but not positioned as this is a kerbside delivery. If a smaller vehicle is required, please email us at sales@fueltankshop.co.uk quoting your order number and name.
HIAB Delivery
HIAB delivery is available but must be requested and there will be an additional cost for this service. If a HIAB delivery is required, please email us at sales@fueltankshop.co.uk quoting your order number and name, and we will come back to you with a price for this service.
Accessories:
Most accessories will be delivered within 1-3 working days (certain products and postcodes may take longer, please check the product page for update to date information). If you require them quicker, we can on occasions offer a next day service (please contact us to discuss). If the item(s) are out of stock, we will advise you of the expected lead time, and you will of course have the opportunity to cancel with a full refund.
Tigerloop Bio Combi De-Aerator - Internal Fitting Returns Information
Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to section 7. **
All Items must be returned unused, refunds cannot be issued for used or previously installed items.
Please be aware that returning a tank can be complicated and expensive, so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).
If you wish to return goods, please complete the form on this page to provide further information.
Once your request is approved, a valid Returns Authorisation Number (RAN) will be issued to initiate the returns process along with information on how & where to return your order along with any costs involved.
Please DO NOT return any goods without this authorisation. Goods cannot be accepted without this.
Returns are not accepted at our Minehead Office, please wait until we contact you before returning any goods.
