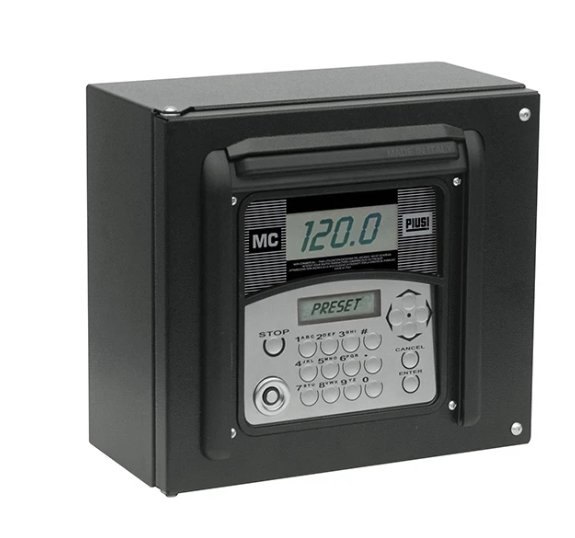

Piusi MC BOX Fuel Management Syste
The Piusi MC Box Fuel Management System has the capability to control and manage the consumption of fuel for users in the private and commercial sector at a low cost. The MC Box is the perfect fuel monitoring solution as an ‘add on’ unit for new or existing pumps, or where it is preferable to have the pumps and the control panel installed in two different places.
This Piusi fuel tank management system consists of a dedicated multi-user panel incorporated in a weatherproof lockable casing, that is capable of recording the date, time and amount of fuel dispensed for the last 255 transactions. It also has fuel security features by only allowing authorised users to dispense the fuel from the diesel storage tank.
These fleet fuel management systems are available as a version that controls up to 80 users and a version that controls up to 120 users. The Piusi MC Box fuel pump monitoring systems are able to be controlled at the unit via a pin code or a magnetic key system, and using the additional Piusi Self Service Desk fuel management software can also be connected to a local PC for viewing and reporting on the transaction data.
Specification:
- Controls up to 80 or 120 users (depending on model)
- 'Add on’ fuel security for an existing pumping system
- Limits pump access to users via pin code or key (if purchased)
- Records transaction data such as user, date, time & QTY
- Facility to record vehicle reg number & odometer readings
- Pump start/stop & pre-set dispense features
- Local memory of 255 transactions
- Optional software to download data to a Windows PC
| Code | Description | Voltage | Duty Cycle | Pulse Input (pp/l) | Users |
| F13980010 | MC Box 12v 120 Licence | 12V | 30 mins | Any | 120 |
| F13980020 | MC Box 24v 20 Licence | 24V | 30 mins | Any | 120 |
| F1398000B | MC Box 230v 80 Licence | 230v | Any | 80 | |
| F13980050 | MC Box 230v 120 Licence | 230v | Any | 120 |
Optional Extras (many included in 'Complete Kit'):
- K600 Pulse Meter
- Downloadable Software (Hardwired or Key Reader)
- Software on USB (Hardwired or Key Reader)
- Manager Key
- User Keys (pack of 10)
'Complete' Versions include:
- Either Software as download or on USB
- 10 User Keys
- 1 Manager Key
- Flow Meter - K600 (Diesel)
Please Note - If MC Box Only Is Required Then A Pulse Meter Will Be Required To Enable The System To Read The Fuel Correctly. This Will Digitally Count The Fuel With A Pulse Ratio Which Is Then Sent To The MC Box And Converted Into A Numerical Value Showing The Litres Dispensed. Different Flow Rates Will Require Different Pulse Meters. The K600/3 Supplied In The Complete Systems Are Suitable For Flow Rates Of 10 - 100 lpm
Piusi MC BOX Management System Specification
- Product Code: CT
- Suitable For Fuel: Diesel
