Piusi ST Box Fuel Transfer Pump

Product Ref: F00365020 / F00365050 / F00365010

Home Delivery

United Kingdom mainland delivery from FREE ex VAT

Free Delivery to Mainland UK - (Postcode exclusions apply to AB, BT, DD, EH, FK, G, GY, HS, IM, IV, JE, KA, KW, KY, ML, PA20+ & PH, PO30+, ZE Please Check With Us)

check delivery cost

Choose option:

updown

Piusi ST Box Fuel Transfer Pump Downloadable Documents

Piusi ST Box Fuel Transfer Pump Description

Piusi ST Box Fuel Transfer Pump

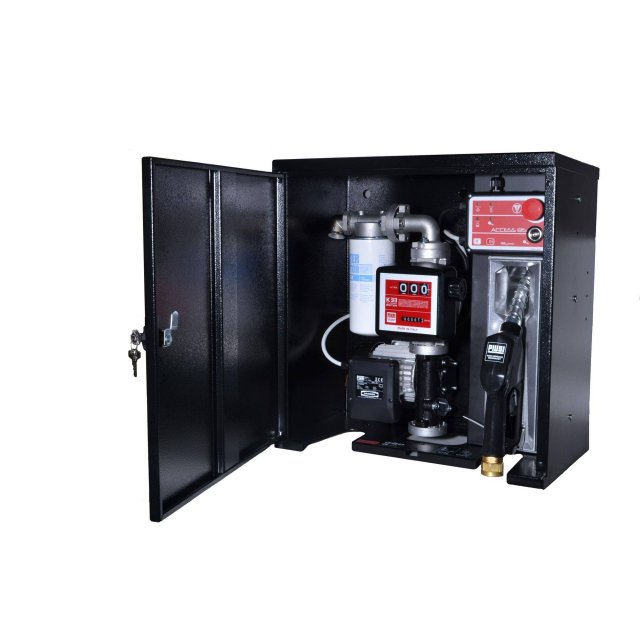

The Piusi ST Box diesel transfer pump is a self-contained diesel refuelling pump kit, in a sturdy steel locking box designed for secure and safe refuelling activities. Depending upon the refuelling location, this Piusi pump can be mounted on either a static or mobile fuel storage tank that is the designated vehicle refuelling point. These diesel fuel transfer pumps are available in Basic and Pro versions depending upon the customer's individual requirements. Both options include a fuel dispensing pump, automatic nozzle, flow meter, hose and filter.

The Pro version of the electric fuel transfer pump is able to control access to the pump via coded keys. It also supports integration of a level sensor to stop the pump should the fuel level drop too low in the fuel storage tank. This combined with the addition of an emergency stop and pump timer creates a very safe, user friendly easy to install diesel fuel dispenser

  • Steel locking box fuel dispenser
  • Panther or E120 fuel transfer pumps
  • Incorporated bypass valve
  • Flow Rate 56-85ltr per min (depending on model)
  • 30 micron water filter
  • Mechanical K33 flow meter
  • Automatic nozzle & nozzle support
  • Nozzle holder pump start/stop lever (Pro version only)
  • Access 85 pump controller (Pro version only)
  • Protection grade: IP55
  • Available in 230v

Please note: Piusi is Italian made and therefore supplied with a 2 pin European plug (Europlug).  You will either need to change the plug for a UK 3 pin plug or utilise an adaptor.

Piusi ST Box Fuel Transfer Pump Specification

  • Product Code: CT
  • Suitable For Fuel: Diesel, Gas Oil, HVO

Piusi ST Box Fuel Transfer Pump Delivery Information

Tanks:

The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page.  Standard tank deliveries are "kerbside" which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.



Tanks Over 2500L – Articulated Lorry – Customer Offload:

These tanks will be delivered on an articulated vehicle (approximately 16.5m long x 2.6m wide x 3m high) which has no offloading on board, it is the customer's responsibility to offload the tank, which may require a telehandler / forklift.  Curtain sided vehicles are also used, so please note that if there are obstacles or hanging branches on the road to the delivery site etc, the driver may refuse to drive the vehicle to the customer's location due to the possibility of damaging the vehicle. Please let us know if there are any obstructions before delivery, so we can arrange alternative transport.



18 Tonne Tail Lift HGV

This vehicle is the size of the largest bin lorries (for comparison) and is approximately 8.2m long x 2.6m wide x 4m high, often curtain sided so please note that if there are hanging branches etc, these vehicles will not attempt to drive down due to the possibility of damaging the vehicle and so it is recommended that a smaller vehicle is requested. Tanks will be lowered to the ground but not positioned as this is a kerbside delivery.  If a smaller vehicle is required, please email us at sales@fueltankshop.co.uk quoting your order number and name.



HIAB Delivery

HIAB delivery is available but must be requested and there will be an additional cost for this service. If a HIAB delivery is required, please email us at sales@fueltankshop.co.uk quoting your order number and name, and we will come back to you with a price for this service.



Accessories:

Most accessories will be delivered within 1-3 working days (certain products and postcodes may take longer, please check the product page for update to date information). If you require them quicker, we can on occasions offer a next day service (please contact us to discuss). If the item(s) are out of stock, we will advise you of the expected lead time, and you will of course have the opportunity to cancel with a full refund.





Piusi ST Box Fuel Transfer Pump Returns Information

Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to section 7. **

All Items must be returned unused, refunds cannot be issued for used or previously installed items.

Please be aware that returning a tank can be complicated and expensive, so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).

If you wish to return goods, please complete the form on this page to provide further information.

Once your request is approved, a valid Returns Authorisation Number (RAN) will be issued to initiate the returns process along with information on how & where to return your order along with any costs involved.

Please DO NOT return any goods without this authorisation. Goods cannot be accepted without this.

Returns are not accepted at our Minehead Office, please wait until we contact you before returning any goods.

View Fuel Tank Shop return policy now.
