Piusi K700 Fuel Flow Meter

Product Ref: F00540030

Home Delivery

United Kingdom mainland delivery from FREE ex VAT

Free Delivery to Mainland UK - (Postcode exclusions apply to AB, BT, DD, EH, FK, G, GY, HS, IM, IV, JE, KA, KW, KY, ML, PA20+ & PH, PO30+, ZE Please Check With Us)

check delivery cost

updown

Piusi K700 Fuel Flow Meter Description

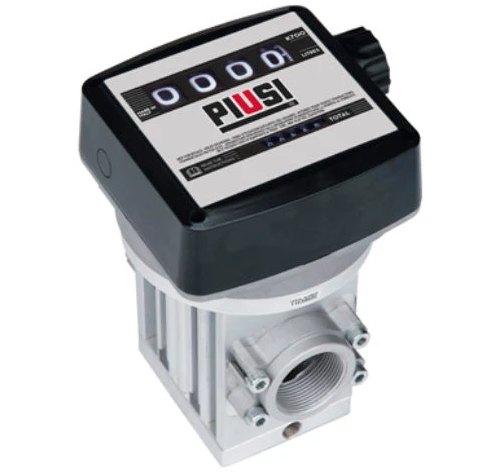

Piusi K700 Fuel Flow Meter

The Piusi K700 mechanical fuel flow meter uses an over gear system to accurately measure the amount of diesel dispensed, even at higher flow rates, which is indicated on its large mechanical display. Due to its maximum flow rate of 220lpm, the K700 fuel counter meter is designed for higher flow applications where larger volumes of fuel may be required to be transferred. This diesel flow meter is a durable solution that is easy to fit and calibrate and comes complete with an inlet filter for removing large debris.

The k700 fuel flow meter body can also be rotated to allow the flow from four directions, which makes this Piusi flow meter a flexible solution for a range of installations.

Please Note: If being used with HVO, the meter should be re-calibrated based on it's SG of 0.78 (diesel is 0.84)

Specification:

  • Mechanical fuel flow meter
  • Can be rotated to allow flow from 4 directions
  • Oval gear system
  • Working temperature -20°c/+60°c
  • 400µ inlet filter
  • Flow rate: 40-220ltr Per Min
  • 1 ½” F x F BSP Flanged Inlet/Outlet
  • Accuracy +/-1% after calibration
  • 4 digit resettable and 8 digit non-resettable totaliser
  • Suitable for diesel

Piusi K700 Fuel Flow Meter Specification

  • Product Code: CTS
  • Suitable For Fuel: Diesel, HVO
