Piusi K150 Fuel Flow Meter Description

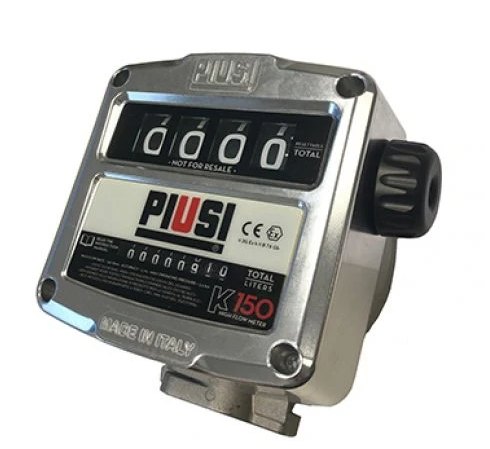

Piusi K150 Fuel Flow Meter

The Piusi K150 mechanical fuel flow meter uses a nutating disk to measures the quality of fuel being dispensed, which is then displayed on the mechanical face. Designed for high flow refuelling applications, the K150 diesel flow meter benefits from up to 33% less pressure drops than alternative models. enabling it to maintain as much of the pumps flow rate as possible. With a four-digit resettable and 8-digit non-resettable totaliser, you can measure up to 9999.9 litres - perfect for refilling larger vehicles and machinery tanks.

Please note: If being used with HVO, the meter should be re-calibrated based on its SG of 0.78 (diesel is 0.84)

Specification

  • Mechanical fuel flow meter
  • Flow rate: 25-150ltr Per Min
  • Can be rotated to allow flow from 4 directions
  • 1” F x F BSP Inlet/Outlet
  • Accuracy +/-1% after calibration
  • Working temperature -30°c/+60°c
  • Polybutylene nutating disk system
  • Robust aluminium body for durable wear in heavy duty environments
  • 4 digit resettable and 8 digit non-resettable totaliser

Piusi K150 Fuel Flow Meter Specification

  • Product Code: CTS
  • Suitable For Fuel: Petrol, Diesel, Bio Fuel, HVO
