Piusi Cube 90 Diesel Transfer Pump

Product Ref: 59200A

Home Delivery

United Kingdom mainland delivery from FREE ex VAT

Free Delivery to Mainland UK - (Postcode exclusions apply to AB, BT, DD, EH, FK, G, GY, HS, IM, IV, JE, KA, KW, KY, ML, PA20+ & PH, PO30+, ZE Please Check With Us)

check delivery cost

updown
You may also need:
Piusi Cube Pedestal
Piusi Cube Pedestal
£253.04 ex VAT
(£303.65 inc VAT)
Piusi Cube Quick Coupling 1 Inch x 2 Inch
Piusi Cube Quick Coupling 1 Inch x 2 Inch
£41.15 ex VAT
(£49.38 inc VAT)
Spillpod Pads BX0665
Spillpod Pads BX0665
£35.00 ex VAT
(£42.00 inc VAT)

Piusi Cube 90 Diesel Transfer Pump Downloadable Documents

Piusi Cube 90 Diesel Transfer Pump Description

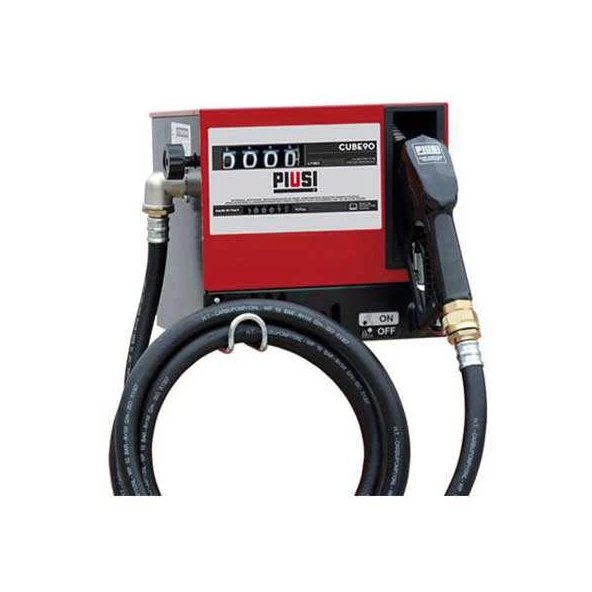

Piusi Cube 90 Diesel Transfer Pump

The Piusi Cube 90 diesel transfer pump has been developed to have a higher flow and is therefore a 90lpm version of the industry renowned Piusi Cube 56 & Cube 70 Fuel Dispensers. Thanks to its quicker dispensing performance, this refuelling pump is designed for filling larger vehicle tanks and therefore, rather than coming with a K33 flow meter, comes with a K44. The K44 is a four digit mechanical flow meter used for refuelling large vehicles, where a four digit amount of fuel is more likely to be dispensed in a single transaction. This Piusi electric fuel transfer pump also comes with an Auto 120 nozzle, due to the pump being too quick for use with the standard Auto 60 or Auto 80 nozzle. This fuel dispenser comes with an in-built nozzle holder with pump start/stop lever, making operating the pump an easy process.

This Italian manufactured Piusi Pump unit, allows fast and safe refuelling of large vehicles, whilst measuring the quantites of fuel being dispensed. Similarly to the Cube 56 and 70, the Cube 90 can be installed on drums with the optional 2” quick coupling, or can be mounted freestanding using a pedestal. A wall support kit is also available in order to fit the Cube 90 refuelling pump onto a wall or side of a tank.

Please note: The Cube 90 has a 30 minute on, 30 minute off duty cycle

  • Fully enclosed fuel dispenser
  • 230v Diesel Transfer Pump
  • Mechanical seal & incorporated bypass valve
  • Flow Rate 90ltrs Per Min
  • Automatic nozzle & 4m x 3/4' Delivery Hose
  • 4 Digit Flow Meter
  • Nozzle holder with pump start/stop lever
  • Protection grade: IP55 (Internal Motor)
  • Various mounting options available
  • 30min duty cycle

Please note: Piusi is Italian made and therefore supplied with a 2 pin European plug (Europlug).  You will either need to change the plug for a UK 3 pin plug or utilise an adaptor.



Piusi Cube 90 Diesel Transfer Pump Specification

  • Product Code: CT
  • Suitable For Fuel: Diesel, Gas Oil
