Piusi Cube 70 Diesel Dispensing Unit

Product Ref: 59100A / 59111A / 577000

Home Delivery

United Kingdom mainland delivery from FREE ex VAT

Free Delivery to Mainland UK - (Postcode exclusions apply to AB, BT, DD, EH, FK, G, GY, HS, IM, IV, JE, KA, KW, KY, ML, PA20+ & PH, PO30+, ZE Please Check With Us)

check delivery cost

Choose option:

updown
You may also need:
Piusi Cube Pedestal
Piusi Cube Pedestal
£253.04 ex VAT
(£303.65 inc VAT)
Piusi Cube Quick Coupling 1 Inch x 2 Inch
Piusi Cube Quick Coupling 1 Inch x 2 Inch
£41.15 ex VAT
(£49.38 inc VAT)

Piusi Cube 70 Diesel Dispensing Unit Downloadable Documents

Piusi Cube 70 Diesel Dispensing Unit Description

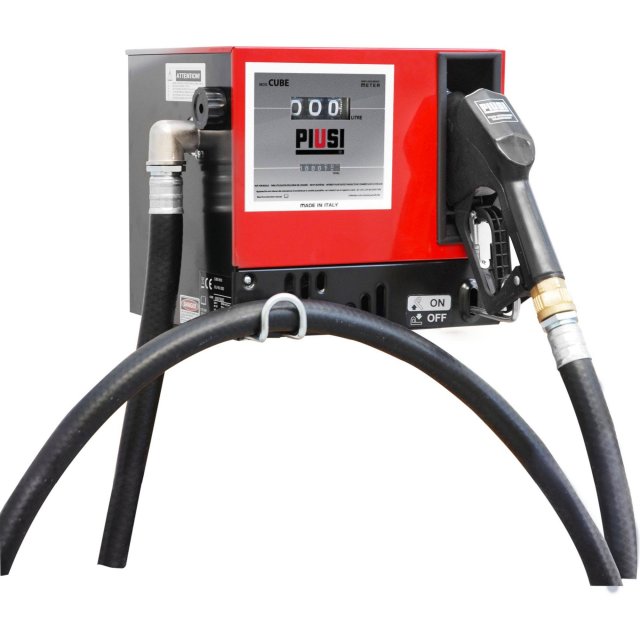

Piusi Cube 70 Diesel Dispensing Unit

The Piusi Cube 70 diesel transfer pump is a diesel refuelling pump designed for the dispensing of fuel from a storage tank to a vehicle in private applications. Thanks to it being in a compact enclosure with the nozzle, hose and meter, the Piusi electric fuel transfer pump is the full package required for the quick and clean refuelling of machinery or fleets. The mechanical flow meter integrated in this Piusi pump unit has sturdy mechanical totaliser, which is renowned for its reliability and accuracy. Also incorporated in this fuel dispenser is a nozzle holster with pump start/stop functionality.

Their versatile nature means that Cube 70 diesel transfer pumps can be mounted on tanks or walls using the optional wall support kit, or can be freestanding with use of the optional pedestal. There is also the option to mount this diesel fuel transfer pump onto a drum with the Piusi quick coupling connection.

  • Fully enclosed fuel dispenser
  • Panther 72 Diesel Transfer Pump
  • Mechanical seal & incorporated bypass valve
  • Flow Rate 35-70ltrs Per Min (Depending on Model)
  • 3 Digit Flow Meter
  • Automatic Nozzle & 4m x 1' Delivery Hose
  • Nozzle holder with pump start/stop lever
  • Protection grade: IP55 (Internal Motor)
  • Available in 230v / 12v / 24v
  • Various mounting options available

Please note for 240v versions: Piusi is Italian made and therefore supplied with a 2 pin European plug (Europlug).  You will either need to change the plug for a UK 3 pin plug or utilise an adaptor.

Piusi Cube 70 Diesel Dispensing Unit Specification

  • Product Code: CT
  • Suitable For Fuel: Diesel, Gas Oil

Piusi Cube 70 Diesel Dispensing Unit Customer Reviews

By on
"Pump fitted working ok, quick fuel delivery, which is handy to fill a 450 litre tank on Fendt tractors in 5 mins or so. Slightly noisy in operation, maybe this is a good thing during night time hours."
Star Rating 4

Piusi Cube 70 Diesel Dispensing Unit Delivery Information

Tanks:

The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page.  Standard tank deliveries are "kerbside" which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.



Tanks Over 2500L – Articulated Lorry – Customer Offload:

These tanks will be delivered on an articulated vehicle (approximately 16.5m long x 2.6m wide x 3m high) which has no offloading on board, it is the customer's responsibility to offload the tank, which may require a telehandler / forklift.  Curtain sided vehicles are also used, so please note that if there are obstacles or hanging branches on the road to the delivery site etc, the driver may refuse to drive the vehicle to the customer's location due to the possibility of damaging the vehicle. Please let us know if there are any obstructions before delivery, so we can arrange alternative transport.



18 Tonne Tail Lift HGV

This vehicle is the size of the largest bin lorries (for comparison) and is approximately 8.2m long x 2.6m wide x 4m high, often curtain sided so please note that if there are hanging branches etc, these vehicles will not attempt to drive down due to the possibility of damaging the vehicle and so it is recommended that a smaller vehicle is requested. Tanks will be lowered to the ground but not positioned as this is a kerbside delivery.  If a smaller vehicle is required, please email us at sales@fueltankshop.co.uk quoting your order number and name.



HIAB Delivery

HIAB delivery is available but must be requested and there will be an additional cost for this service. If a HIAB delivery is required, please email us at sales@fueltankshop.co.uk quoting your order number and name, and we will come back to you with a price for this service.



Accessories:

Most accessories will be delivered within 1-3 working days (certain products and postcodes may take longer, please check the product page for update to date information). If you require them quicker, we can on occasions offer a next day service (please contact us to discuss). If the item(s) are out of stock, we will advise you of the expected lead time, and you will of course have the opportunity to cancel with a full refund.





Piusi Cube 70 Diesel Dispensing Unit Returns Information

Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to section 7. **

All Items must be returned unused, refunds cannot be issued for used or previously installed items.

Please be aware that returning a tank can be complicated and expensive, so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).

If you wish to return goods, please complete the form on this page to provide further information.

Once your request is approved, a valid Returns Authorisation Number (RAN) will be issued to initiate the returns process along with information on how & where to return your order along with any costs involved.

Please DO NOT return any goods without this authorisation. Goods cannot be accepted without this.

Returns are not accepted at our Minehead Office, please wait until we contact you before returning any goods.

View Fuel Tank Shop return policy now.
