Piusi Bi Pump High Speed Battery Transfer Pump Kit For Diesel & HVO 12V
Product Ref: 12BIKIT
Home Delivery
United Kingdom mainland delivery from FREE ex VAT
Free Parcel Delivery (Highlands & Islands are charged a higher fee than standard)
login to savePiusi Bi Pump High Speed Battery Transfer Pump Kit For Diesel & HVO 12V Downloadable Documents
Technical DataPiusi Bi Pump High Speed Battery Transfer Pump Kit For Diesel & HVO 12V Description
Piusi Bi Pump High Speed Battery Transfer Pump Kit For Diesel & HVO 12V
This Hytek approved assembled in house Piusi Bi pump high speed pump kit is designed for refuelling larger vehicles, agricultural and plant machinery. Spout diameter 25mm. This pump is suitable for use with diesel, HVO and biodiesel up to B5.

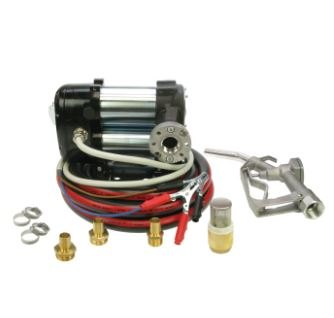

Supplied as a complete dispensing kit, we add the locally supplied hose, manual trigger nozzle, hose ends and sealing tape together with foot valve to help keep the pump primed with an integral strainer to ensure no particles can jam the pump. All assembled and packed in the UK by Hytek. Designed with the user in mind.
This Hytek approved Piusi 12BIKIT is suitable for dispensing diesel, HVO, and biodiesel up to B5, particularly useful when mains power is not available and as a portable dispensing pump kit for filling vehicles on remote sites. A popular choice in the agricultural, construction and plant sectors. Direct drive vane pump, with integrated bypass valve, is simple and easy to operate.
One advantage is that it is supplied with 7m hose as standard, while many other kits come with 4m. When refuelling on site, a 1.5m suction hose is required for your barrel or tank, leaving a 5.5m dispensing hose. When refuelling large vehicles such as tractors and plant vehicles high off the ground, a normal 4m hose becomes a 2.5m dispensing hose that is often too short. This hose is made locally to Hytek in the UK and has a special liner for use with the latest diesels.
Why Buy:
- Supplied as a complete dispensing kit, everything you need is in one box
- Empties a 200 litre barrel in 2.5 minutes
- Ideal to refuel agricultural, plant and construction machinery vehicles on site, as well as trucks
- Cost-effective way to dispense fuel remotely and when no mains power is available
Key Features:
- Suitable with diesel, HVO or biodiesel up to B5
- Dispensing flow rate up to 80 litres per minute
- Maximum run time 30 minutes
- Aluminium manual nozzle with inlet swivel
- Brass foot valve with integral strainer (strainer must be fitted or warranty void)
- Foot mounting plate
- On/off switch
- Bypass valve
- 2m long battery cable and battery croc clips
- 7m delivery and lined suction and delivery hose (most other kits have 4m)
- Suction foot valve and strainer must be fitted or warranty void
- Weatherproof to IP54 for outdoor use
- 1" BSP female parallel ports
- 1 year parts warranty offered as standard
Piusi Bi Pump High Speed Battery Transfer Pump Kit For Diesel & HVO 12V Specification
- Product Code: HY
- Guarantee: 1 Year Guarantee
- Suitable For Fuel: Diesel, HVO
