Piusi Access 85 Fuel Access Control Unit - Self Install Retail Kit

Product Ref: ACC85000

Home Delivery

United Kingdom mainland delivery from £9.95 ex VAT

Parcel Delivery (Highlands & Islands are charged a higher fee than standard)

check delivery cost

updown
You may also need:
Piusi Ocio Fuel Tank Level Gauge
Piusi Ocio Fuel Tank Level Gauge
from £468.90 ex VAT
(£562.68 inc VAT)
Piusi Manager Key
Piusi Manager Key
£71.70 ex VAT
(£86.04 inc VAT)
Piusi User Keys
Piusi User Keys
£161.80 ex VAT
(£194.16 inc VAT)

Piusi Access 85 Fuel Access Control Unit - Self Install Retail Kit Downloadable Documents

Piusi Access 85 Fuel Access Control Unit - Self Install Retail Kit Description

Piusi Access 85

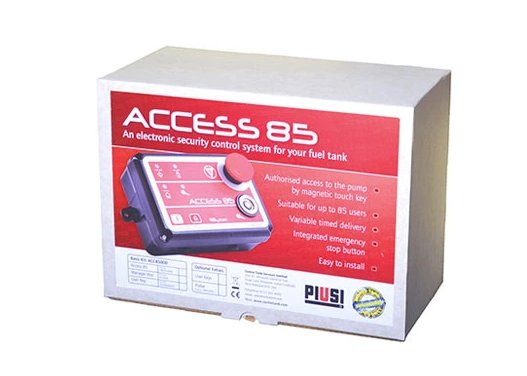

Piusi Access 85 self install retail pack is a fuel tank security system supplied with all items required to self install the unit on an existing fuel storage tank (Pump Controller, Fuel Level Probe, Manager Key & User Key). Emergency stop button & variable delivery timer. Ideal solution when a user requires the security benefits of a fuel management system, but finds their reporting software costly and unnecessary.

The All New Piusi Access 85 Fuel Management System can be used to control access to a fuel transfer pump for up to 85 users plus it can be used to control the operating conditions of the pump. The Piusi Access 85 will only allow access by authorised personnel to the fuel pump by the use of an electronic user key and is ideal for haulage, commercial and industrial users looking to keep tight control over who is allowed to dispense diesel. The Piusi Access 85 can also be connected to an Ocio level sensor, which would then turn the pump off under low level conditions thus protecting the fuel pump from unnecessary damage due to 'running dry'. The unit can be linked to a nozzle switch so that the pump is turned off upon replacing the nozzle in the holster thus shutting down the whole system until the next refuelling. In addition the Piusi Access 85 has a variable timer to shut the pump off after a predetermined time plus an safety/emergency stop button in the event of an emergency, which makes for a very safe and dependable diesel transfer system. All of these functions can be configured by the on site manager.


Specification

  • Controls up to 85 users/keys
  • Variable timed delivery
  • Emergency stop button
  • LED status information for operation and alerts
  • Available in 230v

Included in Box

  • Access 85 Controller
  • Fuel Level Probe Input
  • Instructions
  • 1x Manager Key
  • 1 x User Key
  • 1m Twin & Earth
  • Necessary Bolts & Screws

Main Benefits of the Piusi Access 85

  • Controls access to a diesel dispensing system
  • Only specified users can operate the pump
  • Uses same manager & user keys as the Piusi Cube 70MC and Piusi MC Box FMS
  • Suitable for up to 85 users
  • Can turn the pump off when the tank level gets low (When connected to an Ocio level sensor)
  • Variable timer to shut the pump off after a predetermined time
  • Safety/Emergency stop button
  • Can be linked to a nozzle switch so that the pump is turned off upon replacing nozzle on holster

Please note: Piusi is Italian made and therefore supplied with a 2 pin European plug (Europlug).  You will either need to change the plug for a UK 3 pin plug or utilise an adaptor.
