Dymac FuelTainer Versatile 30900 Litre Steel Bunded Diesel Tank
Product Ref: FTV-30900L
Dymac FuelTainer Versatile 30900 litres (6798 gallons) steel bunded diesel dispensing tank
Please contact us for lead time
Custom Delivery Required
Delivery price on application.
You may also need:
login to saveDymac FuelTainer Versatile 30900 Litre Steel Bunded Diesel Tank Downloadable Documents
Dymac Product BrochureDymac FuelTainer Versatile 30900 Litre Steel Bunded Diesel Tank Description

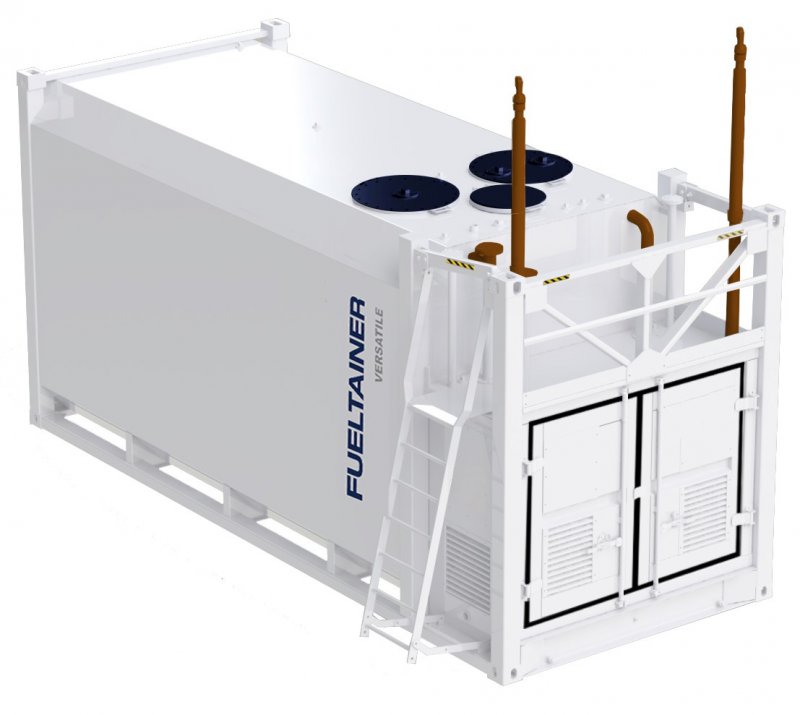

FuelTainer Versatile 30900 Litre Steel Bunded Diesel Tank
The Dymac FuelTainer Versatile tank spacious design allows for the easy fitting of various fuel management systems, suitable to meet the fuelling requirements of rental, construction, commercial, mining, military, and farming sectors worldwide.
The range is available in six sizes and can carry volumes from 12000 litres to 75000 litres. While well suited for static applications, the tank is portable when empty and can be easily adapted to support multiple applications making it the ideal choice for both large and small fuel distribution projects. The FuelTainer Versatile Tank range is ISO, CSC, UL142, ULCS601-07 & BS799 certified.
The tank features a class leading innovative double wall design that provides the safe and secure storage and dispensing of diesel. The tank can be easily up-fitted with various pump options
FuelTainer Versatile tanks have been designed to be easily transportable when empty. They come with their own ISO twist locks allowing them to be fixed onto 40 foot flat bed trucks and transported
Tank is not supplied as standard with pump. Please choose whether 12v or 230v pump is required
Specification:
- Capacity 30901 litres
- Safe fill level 29350 litres
- Length 6058mm
- Width 2438mm
- Height 2896mm
- Bund steel thickness 4mm
- Inner tank steel thickness 6mm
- Empty weight 7695kg
- Full weight 32647kg
Standard Specification:
- Fill point pipe work, valve and connections
- Venting for tank
- Access ladder & platform
- Calibrated dipstick
- Anti syphon valve (foot valve)
- 80mm tanker fill point
- Fire safe flange ball valve, camlock adaptor & cap
- Non return valve
- Mechanical overfill valve
- Internal steel pipe work
- 6" socket for mounting submersible pump
- Bunded pump bay complete with water / product drain valves
- Internal access for hoses
- Bund ventilation
- Front earth connections
- Self bunded with external tank and external bund, sloping floor design c/w corner castings
- BSP thread ports except when only NPT possible with UK equipment installed
- Walk in bunded equipment compartment area, lockable pedestrian door
- Colourway RAL9016
- Internal surface cleaned & coated with light oil
Options:
- 12v 56lpm pump supplied with 1.5m x 1" suction hose c/w camlock device, mounting bracket, 2m cable c/w crocodile clips, water and particulate filter, 4m x 3/4" delivery hose and automatic nozzle with swivel
- 230v 72lpm electric pump comes with 4m 3/4" delivery hose, automatic nozzle, flow meter and filter
- 10m 3/4" retractable hose & reel which can be supplied with either pump
Dymac FuelTainer Versatile 30900 Litre Steel Bunded Diesel Tank Specification
- Product Code: DC
- Made From: Steel
- Suitable for : Steel Tanks
- Suitable For Fuel: Diesel, Gas Oil, Bio Fuel, HVO
- Tank Shape: Horizontal
- Tank Type: Bunded
Dymac FuelTainer Versatile 30900 Litre Steel Bunded Diesel Tank Delivery Information
Tanks:
The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page. Standard tank deliveries are "kerbside" which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.
Tanks Over 2500L – Articulated Lorry – Customer Offload:
These tanks will be delivered on an articulated vehicle (approximately 16.5m long x 2.6m wide x 3m high) which has no offloading on board, it is the customer's responsibility to offload the tank, which may require a telehandler / forklift. Curtain sided vehicles are also used, so please note that if there are obstacles or hanging branches on the road to the delivery site etc, the driver may refuse to drive the vehicle to the customer's location due to the possibility of damaging the vehicle. Please let us know if there are any obstructions before delivery, so we can arrange alternative transport.
18 Tonne Tail Lift HGV
This vehicle is the size of the largest bin lorries (for comparison) and is approximately 8.2m long x 2.6m wide x 4m high, often curtain sided so please note that if there are hanging branches etc, these vehicles will not attempt to drive down due to the possibility of damaging the vehicle and so it is recommended that a smaller vehicle is requested. Tanks will be lowered to the ground but not positioned as this is a kerbside delivery. If a smaller vehicle is required, please email us at sales@fueltankshop.co.uk quoting your order number and name.
HIAB Delivery
HIAB delivery is available but must be requested and there will be an additional cost for this service. If a HIAB delivery is required, please email us at sales@fueltankshop.co.uk quoting your order number and name, and we will come back to you with a price for this service.
Accessories:
Most accessories will be delivered within 1-3 working days (certain products and postcodes may take longer, please check the product page for update to date information). If you require them quicker, we can on occasions offer a next day service (please contact us to discuss). If the item(s) are out of stock, we will advise you of the expected lead time, and you will of course have the opportunity to cancel with a full refund.
Dymac FuelTainer Versatile 30900 Litre Steel Bunded Diesel Tank Returns Information
Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to section 7. **
All Items must be returned unused, refunds cannot be issued for used or previously installed items.
Please be aware that returning a tank can be complicated and expensive, so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).
If you wish to return goods, please complete the form on this page to provide further information.
Once your request is approved, a valid Returns Authorisation Number (RAN) will be issued to initiate the returns process along with information on how & where to return your order along with any costs involved.
Please DO NOT return any goods without this authorisation. Goods cannot be accepted without this.
Returns are not accepted at our Minehead Office, please wait until we contact you before returning any goods.
