Dymac Falcon Solar Light FSL-201 Tank Compliance
Certified to transport when full of fuel
Certified to UL142, ULCS601 & UN31A/Y ADR
Dymac Falcon Solar Light FSL-201 Downloadable Documents
Dymac Falcon Solar Light FSL-201 Description

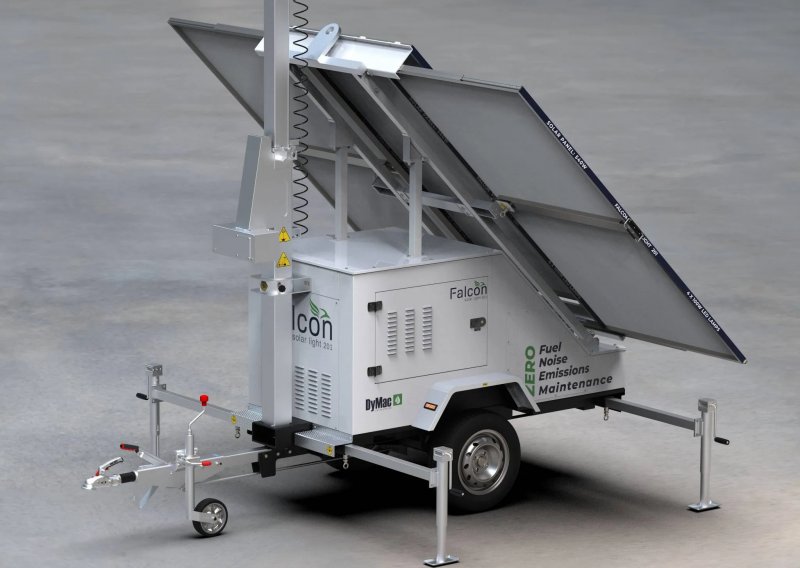

Dymac Falcon Solar Light 201
The Dymac Falcon Solar Light 201 is a compact and powerful solar lighting tower
The FSL-201 features 4 LED lamps which provide a brighter and more environmentally-friendly lighting system and security camera
The innovative solar panel and trailer design make the FSL-201 easy to transport and set up without taking up valuable space
2400 sq.m light coverage, 0% emissions, 0% noise and 0% fuel
Run time 365 nights
Standard Specification:
- Solar Charging Controller
- Model UP 2000 - HM6022
- Maximum battery charging current 60A
- Rated voltage 24v
- Maximum PV input power 2500W
- Maximum output efficiency 99.5%
- Utility input voltage 176VAC - 264VAC (default) and 90VAC - 280VAC (programmable)
- Utility input frequency 40 - 65Hz
- Maximum utility charge current 60A
- Continuous output power 2000W (inverter)
- Output voltage range 220VAC - 230VAC
- IP30
Solar Panel
- Maximum power 550W
- Maximum power voltage 41.96v
- Maximum power current 13.11A
- Lifting angle 45 degree
- Sliding extending type and 6.85sq.m area
Battery Bank
- 2 x 100Ah 25.6v lithium-ion batteries
- Maximum charging current 100A
- AC 220V - 240V 20A battery charger
- 500W inverter
- Web camera HD-IP WiFi operated web camera
- 4G router
Trailer
- AL-KO B750 axle
- Loading capacity 750kg
- Ball type hitch
- Maximum speed <80km/h
Mast
- LHSL-1000A1 mast
- Maximum lifting height 7.5m
- Electric mast
LED Lamp
- Input voltage DC 24v
- 100W LED power (1 lamp) 160lm/w
- Light beam angle 60 degree
- 3000 - 5700K colour temperature
- IP67
Dimensions:
- Length 2300mm
- Width 1250mm
- Height 2550mm
Weight 774kg
Dymac Falcon Solar Light FSL-201 Specification
- Product Code: DC
- Footprint (L+W): 1190mm + 1150mm
