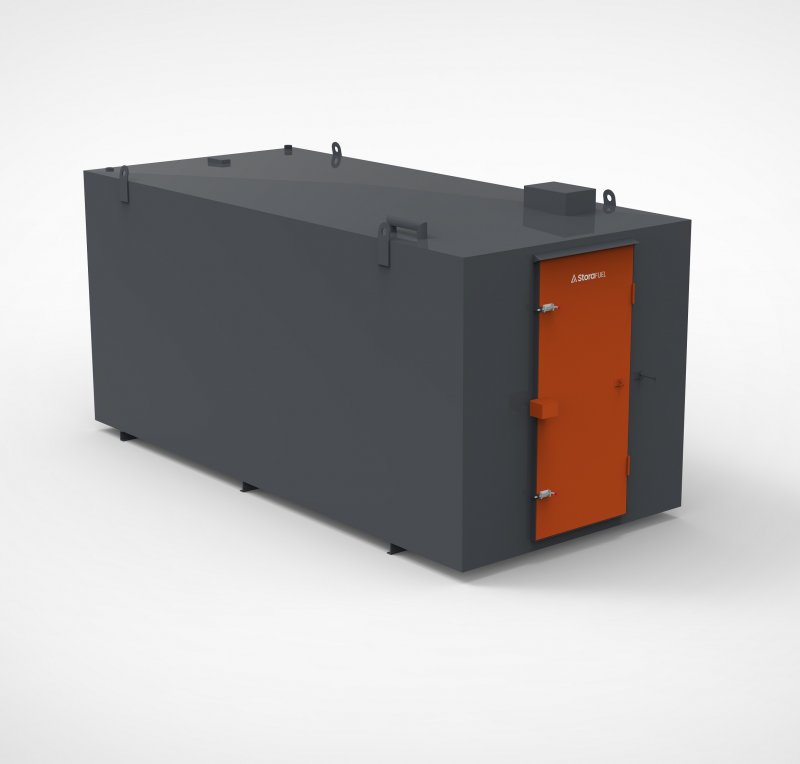

Atlantis StoraFuel 10000 Litre Steel Bunded Diesel Dispensing Tank
Product Ref: TAN.DIS-10000
Some Optional Extras available:
10m Hose Reel, Pump Upgrade, Roller Shutter Door, Fuel Polishing System.
Lead time approx. 20 - 30 working days
Custom Delivery Required
Delivery price on application.
You may also need:
login to save
TAN.DIS-10000 Specification SheetAtlantis StoraFuel 10000 Litre Steel Bunded Diesel Dispensing Tank Description
StoraFuel 10000 Litre (2200 Gallons) Steel Bunded Diesel Dispensing Tank FTS.DS10000
Tank & Bund:
A 10000 litre steel bunded diesel tank dispenser which is suitable for commercial applications. This tank is well suited for the construction and agricultural industry.
The liquid is stored in the primary or inner tank and the outer tank forms the required bund with capacity for 110% of the primary tank’s capacity which makes this tank suitable for both domestic and commercial installations
This tank is suitable for the storage of Derv (white diesel) or Gas Oil (red diesel).
A bunded tank is a tank within a tank, the outer tank provides protection for the inner tank which therefore makes it harder for the inner tank to fail. However, in the unlikely event of the inner tank failing, the outer tank will provide secondary containment.
This tank does not come with any pump as standard. Tank comes supplied with assembly pack
Specifications:
- Security cabinet – front mounted
- Lockable cabinet swing door (optional roller shutter door available)
- 6m Delivery Hose and Auto Nozzle
- 2″ fill point inside cabinet, c/w lever ball valve, non return valve & drip tray
- 2″ tank to bund vent
- 2″ bund to atmosphere vent
- 1.5″ pump feed (inside cabinet)
- 2 no 1.5″ tank sockets (inside cabinet)
- 1 no 1.5″ bund socket
- Hydrostatic gauge
- Overfill alarm (battery powered)
- Powder fire extinguisher (pre-serviced)
- 15 litre spill kit
- Mounted on full width bearers
- 4 x lifting eyes (for lifting when empty)
- Internal tank bracing
- This tank is made in accordance with BS799pt5
- Material: Steel to BS EN 10025-2:2004 S275JR
- Outer tank forms the required bund, with capacity for 110% of the total liquid being stored.
- 10 year tank warranty
Finish:
Surface preparation ST2. A Zinfos 340WS solvent borne high performance anti-corrosive one coat system is applied and a multi surface self-priming mid sheen topcoat (50% gloss). Applied to give a wet film thickness of 150 microns and dry film thickness of 75 microns.
- Main Tank – RAL 7015 Grey
- Door – RAL 2001 Orange
- Other colours can be requested
Pump Options:
- 70 LPM 230v Piusi Pump Kit (c/w 6m Hose, Water & Particle Filter (10 micron), Auto Nozzle & Mechanical Flow Meter)
- 50 LPM 110v Piusi Pump Kit (c/w 6m Hose, Water & Particle Filter (10 micron), Auto Nozzle & Mechanical Flow Meter)
- 45 LPM 12v Piusi Pump Kit (c/w 6m Hose, Water & Particle Filter (10 micron), Auto Nozzle & Mechanical Flow Meter)
- Semi Rotary Hand Pump Kit (c/w 4m Hose, Water & Particle Filter (10 micron), Manual Nozzle)
Equipment Options:
- Roller Shutter Door
- Manway Access Hatch
- Generator Feed & Return Sockets
- Mesh Floor (inside the cabinet)
- Hose Reel (10m x 1″ diesel hose)
This tank can be paired with most fuel management systems available on the market, please contact one of our team to discuss your requirement in more detail
Dimensions:
- Length: 4000mm
- Width: 1840mm
- Height: 2100mm (including bearers)
- Weight: 2100kg (empty)
Warranty:
- Tank – 10 years
- Pumps & Components – 1 year
Please note: This tank is designed as a static tank and is not certified to be transported when full of fuel. It also should be situated on a non-combustible even and level terrain/surface
