Apollo XT Electronic Fuel Tank Contents Gauge (Underground Tank)

Product Ref: Apollo XT

Home Delivery

United Kingdom mainland delivery from FREE ex VAT

FREE Parcel Delivery for Apollo Products (Highlands and Islands will incur additional costs - please contact us)

check delivery cost

Apollo XT Electronic Fuel Tank Contents Gauge (Underground Tank) Downloadable Documents

Apollo XT Electronic Fuel Tank Contents Gauge (Underground Tank) Description

Apollo XT Electronic Fuel Tank Contents Gauge (Underground Tank)

The Apollo XT Electronic Fuel Tank Contents Gauge allows you to measure the level of fuel in your tank from the warmth, comfort and convenience of your home. It also allows the tank contents readings to be taken at the tank. Designed for use with oil tanks installed underground or positioned above safe working height (not Balmoral underground tanks).

NB: Delivery approx 7 working days (Royal Mail Recorded Delivery)

The Apollo XT Remote fuel oil tank contents gauge, is designed for use with oil tanks installed underground or positioned above safe working height. Such tanks are notoriously difficult to refuel safely. Apollo XT assists in achieving compliance with Health & Safety requirements by allowing the level of fuel remaining inside such tanks to be quickly, safely and accurately determined.





How it works

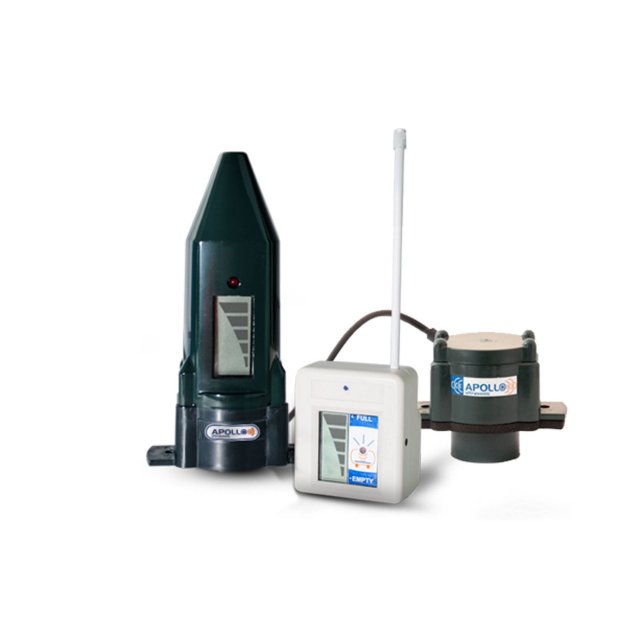

Apollo XT is a multipart system, comprising a tank mounted ultrasonic measurement sensor; a remote, wireless transmitter unit; and a plug in receiver unit.

The on-tank measurement sensor monitors the level of fuel inside the tank and relays this information, via a hardwired connection, to the transmitter unit which is positioned adjacent to the fill point. The transmitter unit features an inbuilt LCD display, showing the level of fuel inside the tank before, during and after refuelling.

The transmitter unit wirelessly relays tank level data to the receiver unit, which simply plugs into a stand 13 amp domestic socket. The receiver unit incorporates a premium quality LCD display, which allows users to easily ascertain the level of fuel remaining inside the tank.


Features

  • Compatible with the standard 32mm port fitted to modern plastic oil storage tanks (please ensure adequate space on tank to mount transmitter)
  • Optional multi adaptor ensures compatibility with most steel tanks.
  • Wireless, tank top, FM transmitter unit
  • Plug in receiver unit with integral antenna
  • Transmitter incorporates a lithium battery with a life expectancy of up to 10 years
  • Premium quality LCD receiver display, readable from a wide range of angles under varying light conditions
  • Inbuilt low level alert
  • Compatible with the Apollo Max Fill handheld tank monitoring unit

Benefits

  • Suitable for use with almost any tank up to 3 metres tall
  • Ideal for tank underground tanks (UST) and tanks positioned above safe working heights
  • Facilitates, cleaner, safer refuelling and reduces the risk of spillages during delivery
  • Cost-effective, affordable and convenient alternative to bespoke, custom-made, alternatives
  • Easy to use, with the transmitter and receiver units incorporating an easy-to-read LCD display
  • Receiver unit incorporates a low level warning alert with audible alarm, reducing the risk of running out of oil
  • Contactless measurement technology and the absence of a direct connection to the oil supply line eliminates the risk of spills and leaks
  • Assists in ensuring compliance with secondary containment requirements.
  • No mains wiring or connection required.
  • Compatible with Apollo Max Fill handheld unit



Applications

Ideal for monitoring heating oil and diesel – but suitable too for a wide range of liquids including admixtures, agricultural fuel oil, anti-freeze, biodiesel, bio heating oil, fuel oil, detergents, lubricants, waste oil and water – at storage tank installations where the tank is positioned above safe working heights or installed underground.

Please note that Apollo LD Remote is a specialist product designed for use primarily with non-standard fuel storage installations. Unlike most other Apollo branded products, it is recommended that the Apollo LD Remote is installed either at time of installation, or retrofitted only by an OFTEC Registered Technician or similarly competent person.


Range

Up to 200 metres line of sight range via secure, wireless, FM data transmissions.


Compliance

Fully compliant with all applicable environmental and technical requirements.

Battery - Widely available Lithium 3V-CR2430

Apollo XT Electronic Fuel Tank Contents Gauge (Underground Tank) Specification
