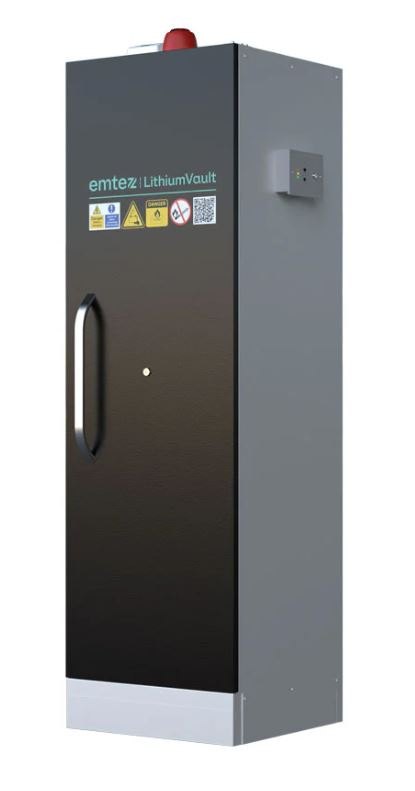

90 Minute 1 Door LithiumVault FirePro Cabinet with Control Panel & Charging - CH-L1F2PG16K

Product Ref: CH-L1F2PG16K

  • Weight: 210.000kg
  • Dimensions: L:600mm W:595mm H:2050mm
  • Home Delivery

    United Kingdom mainland delivery from £15.00 ex VAT

    Parcel Delivery to Mainland UK

    check delivery cost

    updown

    90 Minute 1 Door LithiumVault FirePro Cabinet with Control Panel & Charging - CH-L1F2PG16K Downloadable Documents

    90 Minute 1 Door LithiumVault FirePro Cabinet with Control Panel & Charging - CH-L1F2PG16K Description

    1 Door LithiumVault FirePro Cabinet with Control Panel & Charging

    Single Phase cabinet designed for storing and charging lithium-ion batteries with fire safety features certified for 90-minutes of fire protection, according to EN 14470-1 TYPE 90 standard

    • INTERNAL DIMENSIONS (WXDXH)  496 x 446 x 1540mm
    • SHELF DIMENSIONS (WXDXH)  495 x 420 x 39mm
    • 4 x perforated shelves
    • 1 Door
    • Anti-Spark Hinges
    • Self Closing Door System
    • System with FPC-2V2 control panel
    • Ventilation
    • Sounder beacon
    • Smoke and heat sensors
    • FirePro fire detection and automatic extinguishing
    • 1 Lock (2 x keys supplied)
    • 24 Charging Points (6 x power sockets per shelf) Illuminated o/off Safety Switch
    • Black door with grey frame and interior
    • Standard Regional Socket
    • Cable Section 2m 3G2.5mm2
    • Max Amp Outage 10A
    • 230V
    • MAX OUTPUT:   2,300W



    LPCB certified to EN 12094-1 and EN 54-2 and 4







    90 Minute 1 Door LithiumVault FirePro Cabinet with Control Panel & Charging - CH-L1F2PG16K Specification

    • Product Code: RM
