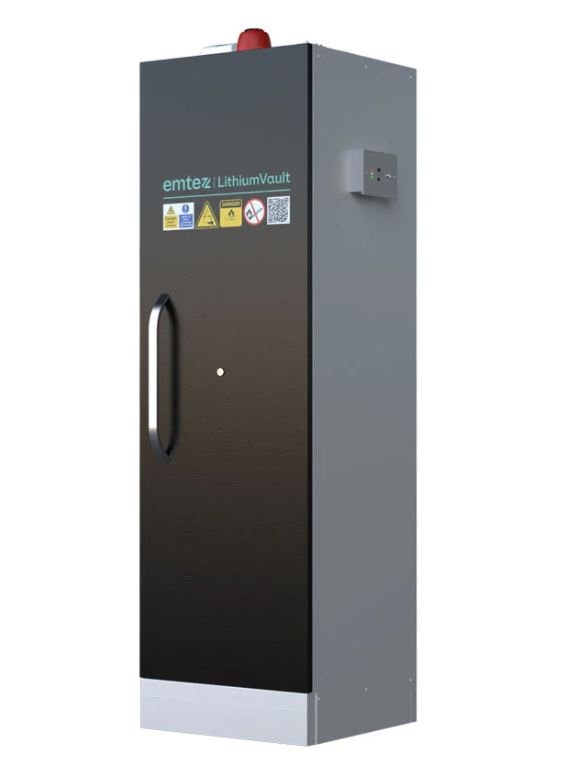

90 Minute 1 Door Lithium-ION Battery Cabinet With Charging & Firepro Suppression - CH-L1F2PGK

Product Ref: CH-L1F2PGB / CH-L1F2PGK

This cabinet will be delivered stood upright, if it arrives lain down please reject it and contact us immediately.

Customer Offloading
  • Weight: 210.000kg
  • Dimensions: L:600mm W:595mm H:2050mm
  • Home Delivery

    United Kingdom mainland delivery from FREE ex VAT

    FREE Delivery to Mainland UK, Customer Offload - Postcode Exclusions Apply

    check delivery cost

    updown
    You may also need:
    90 Minute 1 Door Lithium-ION Battery Cabinet - CH-L1K
    90 Minute 1 Door Lithium-ION Battery Cabinet - CH-L1K
    £2,500.00 £2,200.00 ex VAT
    (£2,640.00 inc VAT)

    90 Minute 1 Door Lithium-ION Battery Cabinet With Charging & Firepro Suppression - CH-L1F2PGK Downloadable Documents

    90 Minute 1 Door Lithium-ION Battery Cabinet With Charging & Firepro Suppression - CH-L1F2PGK Description

    90 Minute Tested 1 Door Lithium-ION Battery Cabinet With Charging & Firepro Suppression - CH-L1F2PGK

    1-door fire cabinet designed to store, and charge, lithium-ion batteries safely across 4 perforated shelves.

    Once temperatures reach over 47 °C, the doors have an automatic hydraulic closing system to contain fires along with closing valves (70 °C). for air inlet and outlet pipes. Included in the build are anti-spark hinges which guarantee excellent door stability and all-round safety.

    Due to battery capacity this unit needs a 3 phase electric supply

    Features:-

    • Internal Dimensions: 496 x 446 x 1540mm
    • Shelf Dimensions: 495 x 420 x 39mm
    • 4 Perforated shelves
    • 1 Lock & 2 Keys supplied
    • 24 Charging Points  (6 x power sockets per shelf)
    • 90-Minutes Fire Rated.
    • Steel Construction with Anti-spark hinges.
    • Ventilation.
    • Self-closing door system.
    • Charging sockets with illuminated on/off safety switch.
    • 5G6mm2 cable section and 4-pole plug.
    • FirePro® fire detection and automatic extinguishing system with FPC-2V2 control panel.
    • Sounder beacon.
    • Smoke and heat sensors.
    • LPCB certified to EN 12094-1 and EN 54-2 and 4 and EN 14470-1 TYPE 90.
    • Spill tray.
    • Voltage: 400V.
    • Max amp: 32A.
    • Max power: 11.96kW.

    90-minute fire resistance EN 14470-1 TYPE 90 meaning in the event of an internal or external fire, there is 90 minutes of protection against it allowing for an appropriate permanent solution
