30m High Capacity Diesel Hose Reel

Product Ref: HRHC2530

Home Delivery

United Kingdom mainland delivery from FREE ex VAT

Free Delivery to Mainland UK - (Postcode exclusions apply to AB, BT, DD, EH, FK, G, GY, HS, IM, IV, JE, KA, KW, KY, ML, PA20+ & PH, PO30+, ZE Please Check With Us)

check delivery cost

updown

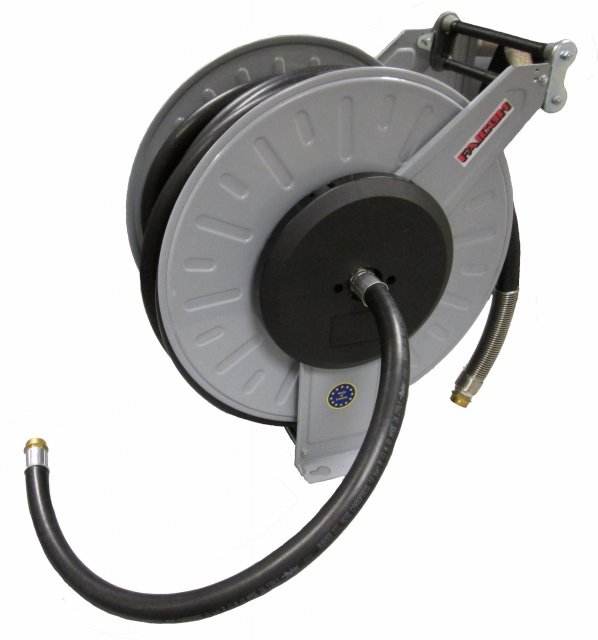

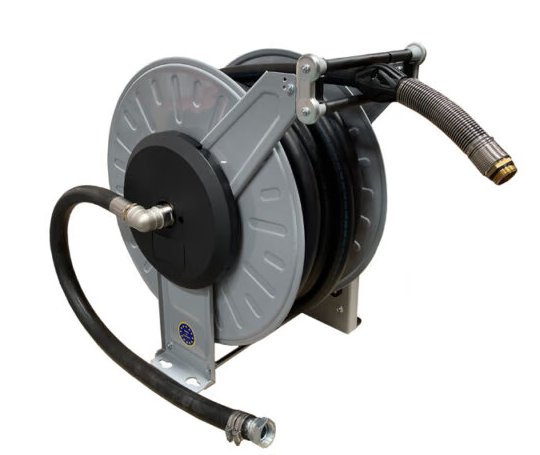

30m High Capacity Diesel Hose Reel Description

30m high Capacity Diesel Hose Reel

This High Capacity Diesel Hose Reel, which comes in 25m and 30m, has extended our hose reel range by providing larger reels specifically designed for use with diesel. This fuel hose reel comes with BSP fittings, rather than the conical fittings often seen on larger reels, in order for easy connection to refuelling nozzles. This spring rewind hose reel comes with a double spring for rewinding the hose, and can also be locked to a desired length via the automatic system. This diesel hose reel is ideal for environments where the vehicle being refuelled is unable to gain access to the fuelling station. This problem is typical of vehicles being refuelled on construction, plant and quarry sites, as well as boats being refuelled in marinas. The 25m and 30m fuel hose reels are designed for use with industrial pumps up to 10 bar pressure.

  • 30m hose
  • 4 way rollers
  • Anti kink spring at nozzle end
  • 1' M BSP parallel fitting on nozzle end
  • Anti-static hose
  • Max pressure 10 bar
  • 25m and 30m versions c/w 1m whip hose (1' M BSP x 1'F BSP 60 deg cone) as standard
  • Supplied with inlet swivel and 90 degree elbow leaving a 1' F BSP for connection
  • Spring rewinding
  • Hose arms can be fixed in three different positions

30m High Capacity Diesel Hose Reel Specification

  • Product Code: CT
  • Suitable For Fuel: Diesel, Gas Oil

30m High Capacity Diesel Hose Reel Delivery Information
