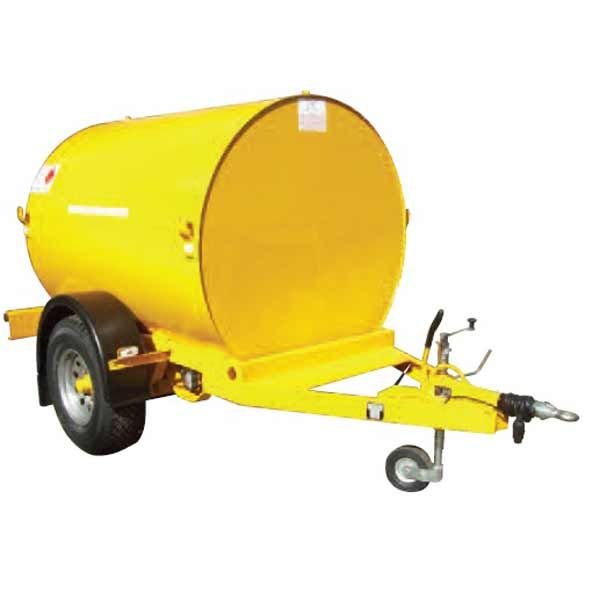

2140 Litre UN Approved EU Highway Diesel Bowser

Product Ref: 2140ROAD

Comes supplied with 1/2" BSP feed and return connections

Customer Offloading Steel Diesel, Gas Oil, HVO Diesel, Gas Oil, HVO Diesel, Gas Oil, HVO Bunded, Transportable
  • Volume: 2140ltr
  • Weight: 850.000kg
  • Dimensions: L:3684mm W:1981mm H:1981mm
  • Lead time approx. 4 weeks

    Custom Delivery Required

    Delivery price on application.

    Choose option:

    updown
    You may also need:
    Boot Cleaner Premium
    Boot Cleaner Premium
    £463.00 ex VAT
    (£555.60 inc VAT)
    65 Litre Fuel Spill Kit - Round Drum OSK6
    65 Litre Fuel Spill Kit - Round Drum OSK6
    £85.00 ex VAT
    (£102.00 inc VAT)

    2140 Litre UN Approved EU Highway Diesel Bowser Tank Compliance

    The 2140 litre bunded diesel highway bowser is the flagship of the fuel bowser range. Favoured by plant hire companies, the bunded diesel EU highway bowser as it's a robust and highly capable fuel bowser, with extreme offroad and on road capabilities.

    The single axle ensures a high ground clearance for off-roading without compromising the comfortable on-road towing, this bunded diesel EU highway bowser is fully certified for the public highway.

    Manufactured from a fully welded steel galvanised chassis and heavy duty running gear.

    The tank is constructed from a polyethylene inner tank to ensure a clean fuel storage solution and secured in a steel outer bund which has four lifting points, two fork truck points (for use when the tank is out of the chassis) and a lockable rear door to protect the pumping equipment and contents.

    Our bunded diesel EU highway bowser is fully U.N certified for 10 YEARS for the storage and transportation of fuel. Please see link https://www.hse.gov.uk/cdg/commonproblems/bowsers.htm

    2140 Litre UN Approved EU Highway Diesel Bowser Downloadable Documents

    2140 Litre UN Approved EU Highway Diesel Bowser Video

    2140 Litre UN Approved EU Highway Diesel Bowser Description

    2140 Litre UN Approved Bunded EU Diesel Bowser - Highway Bowser

    2140 litre (470 gallons) road towable bunded diesel bowser.  Certified UN 1202 (For Road Haulage).

    Like to view the bowser ? Please click on the video tab below for a walk around showing the design & features of this bowser

    Chassis: Constructed from 100 x 50 RSC fully welded with front standing plate and A frame drawbar & hot dip galvanized

    Axle/Suspension: Single Avonride 3000kg rubber torsion beam axle and fitted with Knott 300 x 60 Auto reverse brakes operated by cables and rod

    Wheels & Tyres: 2 no 235/85 x 16 x 12 ply radial tyres fitted to 5 stud 6 1/2" pcd rims

    Coupling: Knott 3000kg Avonride posibrake over run auto reverse c/w spring assisted handbrake lever, breakaway cable and 40mm ring eye or 50mm ball

    Ancillary Equipment: Plastic mudguards, mud flaps, rear support stand, telescopic front jockey wheel, side reflectors, front markers, full road lighting c/w 13 pin plug & 7 pin adaptor

    Outer bund tank:

    • Cylindrical in section with removable top section for tank access
    • Rear access door fitted with stainless steel hinge and fully lockable
    • Bund contains 110% of inner tank content
    • 4 lifting eyes
    • Fork lift pockets (for use when tank off of chassis only)

    Inner Fuel Tank:

    • Constructed from translucent heavy duty polyethylene
    • 2" filler cap & chain
    • 2" manual vent valve
    • Top mounted 1/2" BSP feed & return points
    • Ball valve in base of tank to pump
    • Pressure relief valve

    Pump:

    • K2 Semi rotary hand pump fitted with 15' of 1" fuel hose c/w trigger nozzle and stowed on bracket
    • Fitted with in-line 'Y' strainer
    • All contained within lockable bund area
    • 12V Pump upgrade available at extra cost

    Finish:

    • Primer & 2 top coats - single British Standard (BS) colour



    2140 Litre UN Approved EU Highway Diesel Bowser Specification

    • Product Code: TE
    • Delivery Options: Customer Offloading
    • Made From: Steel
    • Suitable For Fuel: Diesel, Gas Oil, HVO
    • Tank Type: Bunded, Transportable
    • UN Certified / Approved for Transport under ADR: Yes

    2140 Litre UN Approved EU Highway Diesel Bowser Delivery Information

    Our supplier can deliver to mainland UK and Northern Ireland locations but excludes offshore islands and locations and delivery is not included in the tank price

    Delivery is a kerbside delivery service only and not a "drop at your door service".

    Arrangements must be made by the customer to manoeuvre tanks into position.

    Deliveries can be made by articulated lorry and it is the customers' responsibility to ensure safe and adequate access for large lorries plus off loading facilities at the delivery address.

    Off loading of heavy items should be made by fork lift with extended forks or similar heavy lifting equipment

    Tanks cannot be left without a customer signature

    2140 Litre UN Approved EU Highway Diesel Bowser Returns Information

    Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to section 7. **

    All Items must be returned unused, refunds cannot be issued for used or previously installed items.

    Please be aware that returning a tank can be complicated and expensive, so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).

    If you wish to return goods, please complete the form on this page to provide further information.

    Once your request is approved, a valid Returns Authorisation Number (RAN) will be issued to initiate the returns process along with information on how & where to return your order along with any costs involved.

    Please DO NOT return any goods without this authorisation. Goods cannot be accepted without this.

    Returns are not accepted at our Minehead Office, please wait until we contact you before returning any goods.
