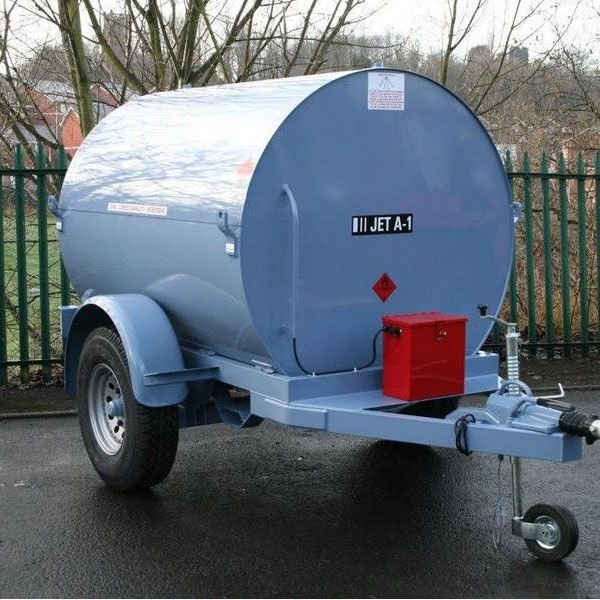

2140 Litre U.N. Approved Bunded Jet A1 Highway Bowser

Product Ref: 2140JET

Steel JET A1 Bunded, Transportable
  • Volume: 2140ltr
  • Weight: 850.000kg
  • Dimensions: L:3684mm W:1981mm H:1981mm
  • Lead time approx. 6 - 8 weeks

    Custom Delivery Required

    Delivery price on application.

    updown

    2140 Litre U.N. Approved Bunded Jet A1 Highway Bowser Tank Compliance

    The 2140 litre bunded Jet A1 EU highway bowser is constructed from a polyethylene inner tank to ensure a clean fuel storage solution, secured in a steel outer bund.

    This bunded Jet A1 EU highway bowser comes with lockable rear door, four lifting points and two fork sockets (for when the tank is out of the chassis). Complete with a fully certified single axle highway towable trailer. The A-frame trailer is fully welded and manufactured from steel and then galvanised as standard, Painted chassis are available upon request

    The 2140 litre bunded Jet A1 EU highway bowser is fully U.N. certified for 10 YEARS for the storage and transportation of fuel. Please see link https://www.hse.gov.uk/cdg/commonproblems/bowsers.htm

    2140 Litre U.N. Approved Bunded Jet A1 Highway Bowser Downloadable Documents

    2140 Litre U.N. Approved Bunded Jet A1 Highway Bowser Video

    2140 Litre U.N. Approved Bunded Jet A1 Highway Bowser Description

    2140 Litre Bunded JETA1 Highway Bowser


    2140 litre (427 gallons) road towable bunded JetA1 bowser.  Certified UN 1202 (For Road Haulage).

    Like to view the bowser ? Please click on the video tab below for a walk around showing the design & features of this bowser

    Chassis: Constructed from 100 x 50 RSC fully welded with front standing plate and A frame drawbar

    Axle/Suspension: Single Avonride torsion beam axle and fitted with 200 x 50 Auto reverse brakes on 4 stud 5 ½”pcd hubs

    Wheels & Tyres: 2 No 175 x 13 x 8 ply radial tyres fitted to 4 stud 5 ½” pcd rims

    Coupling: Knott 2000kg posibrake over run auto reverse c/w spring assisted handbrake lever, breakaway cable & 40mm ring eye or 50mm ball.

    Ancillary Equipment: Moulded mudguards, rear support stand,telescopic front jockey wheel, full road lighting c/w 7 pin plug.

    Outer bund tank:

    • Cylindrical in section with removable top section for tank access.
    • Rear access door, fitted with stainless steel hinge and fully lockable.
    • Bund contains 110% of inner tank.
    • 4 lifting eyes.
    • Fork truck sockets for use when tank not fitted in chassis.

    Inner Fuel Tank:

    • Constructed from translucent heavy duty polyethylene with a capacity of 2140 Litres.
    • 2” filler with cap & chain.
    • 1” vent valve,
    • ½” top mounted suction & return connections.
    • P.R.V. in tank top.
    • Bottom outlet valve.

    Pump:

    • 12 volt flameproof (50lpm standard - upgrade available to 75lpm - please ask for details and prices).
    • 110Ah battery in box
    • Racor filter monitor
    • 7M hose stowed on Bracket bonding reel
    • ZVF trigger nozzle
    • Sample hand pump
    • Non re-sale flowmeter.

    Finish:

    • Primer and two top coats, single British Standard colour.





    2140 Litre U.N. Approved Bunded Jet A1 Highway Bowser Specification

    • Product Code: TE
    • Made From: Steel
    • Suitable For Fuel: JET A1
    • Tank Type: Bunded, Transportable
    • UN Certified / Approved for Transport under ADR: Yes

    2140 Litre U.N. Approved Bunded Jet A1 Highway Bowser Delivery information

    Our supplier can deliver to mainland UK and Northern Ireland locations but excludes offshore islands and locations and delivery is not included in the tank price

    Delivery is a kerbside delivery service only and not a "drop at your door service".

    Arrangements must be made by the customer to manoeuvre tanks into position.

    Deliveries can be made by articulated lorry and it is the customers' responsibility to ensure safe and adequate access for large lorries plus off loading facilities at the delivery address.

    Off loading of heavy items should be made by fork lift with extended forks or similar heavy lifting equipment

    Tanks cannot be left without a customer signature

    2140 Litre U.N. Approved Bunded Jet A1 Highway Bowser Delivery Information

    Tanks:

    The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page.  Standard tank deliveries are "kerbside" which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.



    Tanks Over 2500L – Articulated Lorry – Customer Offload:

    These tanks will be delivered on an articulated vehicle (approximately 16.5m long x 2.6m wide x 3m high) which has no offloading on board, it is the customer's responsibility to offload the tank, which may require a telehandler / forklift.  Curtain sided vehicles are also used, so please note that if there are obstacles or hanging branches on the road to the delivery site etc, the driver may refuse to drive the vehicle to the customer's location due to the possibility of damaging the vehicle. Please let us know if there are any obstructions before delivery, so we can arrange alternative transport.



    18 Tonne Tail Lift HGV

    This vehicle is the size of the largest bin lorries (for comparison) and is approximately 8.2m long x 2.6m wide x 4m high, often curtain sided so please note that if there are hanging branches etc, these vehicles will not attempt to drive down due to the possibility of damaging the vehicle and so it is recommended that a smaller vehicle is requested. Tanks will be lowered to the ground but not positioned as this is a kerbside delivery.  If a smaller vehicle is required, please email us at sales@fueltankshop.co.uk quoting your order number and name.



    HIAB Delivery

    HIAB delivery is available but must be requested and there will be an additional cost for this service. If a HIAB delivery is required, please email us at sales@fueltankshop.co.uk quoting your order number and name, and we will come back to you with a price for this service.



    Accessories:

    Most accessories will be delivered within 1-3 working days (certain products and postcodes may take longer, please check the product page for update to date information). If you require them quicker, we can on occasions offer a next day service (please contact us to discuss). If the item(s) are out of stock, we will advise you of the expected lead time, and you will of course have the opportunity to cancel with a full refund.





    2140 Litre U.N. Approved Bunded Jet A1 Highway Bowser Returns Information

    Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to section 7. **

    All Items must be returned unused, refunds cannot be issued for used or previously installed items.

    Please be aware that returning a tank can be complicated and expensive, so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).

    If you wish to return goods, please complete the form on this page to provide further information.

    Once your request is approved, a valid Returns Authorisation Number (RAN) will be issued to initiate the returns process along with information on how & where to return your order along with any costs involved.

    Please DO NOT return any goods without this authorisation. Goods cannot be accepted without this.

    Returns are not accepted at our Minehead Office, please wait until we contact you before returning any goods.

    View Fuel Tank Shop return policy now.
