2140 Litre Bunded AdBlue EU Highway Bowser

Product Ref: 2140ADBLUEROAD

Steel AdBlue Bunded, Transportable
  • Volume: 2140ltr
  • Weight: 476.000kg
  • Dimensions: L:3555mm W:1550mm H:1524mm
  • Lead time approx. 2 weeks but please check for current lead time

    Custom Delivery Required

    Delivery price on application.

    Choose Pump Required:

    updown

    2140 Litre Bunded AdBlue EU Highway Bowser Tank Compliance

    The 2140 litre highway towable Adblue bowser makes it easy to transport and distribute Diesel Exhaust Fluid.

    Manufactured with a polyethylene inner tank and secured in a bund with lockable rear door this tank ensures the appropriate storage facility for DEF / Adblue.

    A variety of specialist Adblue pumps are available for distributing Adblue to your equipment.

    Skid base and site towable bowsers are also available

    2140 Litre Bunded AdBlue EU Highway Bowser Downloadable Documents

    2140 Litre Bunded AdBlue EU Highway Bowser Description

    2140 Litre Bunded AdBlue Bowser - Highway Bowser

    2140 litre (470 gallons) road towable bunded AdBlue bowser.  Certified UN 1202 (For Road Haulage).

    CHASSIS: Constructed from 100 x 50 RSC fully welded with front standing plate and ‘A’ frame drawbar. Hot dip galvanised.

    AXLE/SUSPENSION: Knott-Avonride 3000kg rubber torsion beam fitted with Knott-Avonride 300 x 60 auto reverse brakes operated via cables and rod.

    WHEELS AND TYRES: 2 No 235/85 x 16 x 12 ply radials fitted to 5 stud 61/2” pcd rims.

    COUPLING: 3000kg Knott-Avonride posibrake over run auto reverse c/w spring assisted handbrake lever, breakaway cable. 40mm ring eye or 50mm ball.

    ANCILLARY EQUIPMENT: Moulded mudguards, mud flaps, rear support stand, telescopic front jockey wheel, side reflectors, front markers, full road lighting c/w 13 pin plug and 7 pin adapter.

    OUTER BUND TANK:

    • Cylindrical in section constructed from 3mm mild steel, with removable top section for tank access.

    • Rear access door fitted with stainless steel hinge and fully lockable.

    • Bund contains 110% of inner tank content.

    • 4 lifting eyes.

    • Fork sockets for use when tank is not fitted in a chassis.

    INNER FUEL TANK:

    • Constructed from translucent heavy duty polyethylene

    • 2" Filler cap & chain

    • 1" Manual vent valve

    • Ball valve in base of tank to pump

    PUMP:

    • Rotary hand pump fitted with 15' of 3/4" Adblue hose c/w trigger nozzle, or

    • 12v Electric pump fitted with 15' of 3/4" Adblue hose c/w trigger nozzle

    FINISH:

    • TANK: Primer & 2 coats of paint - single British Standard (BS) colour
    • CHASSIS: Galvanised

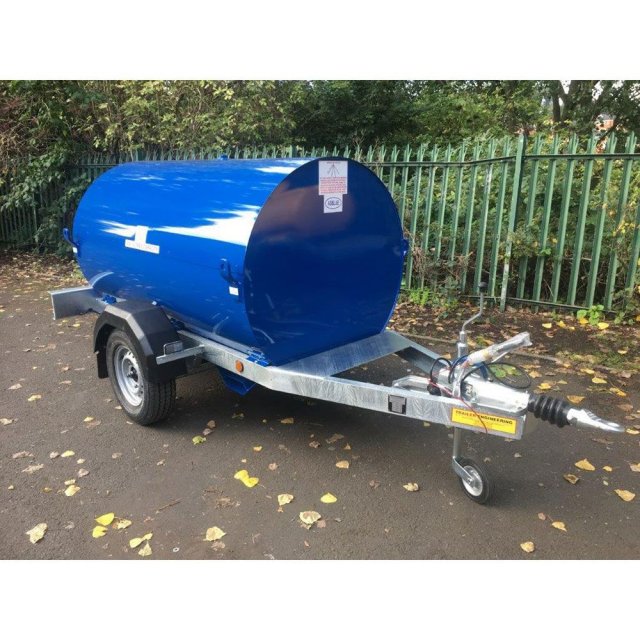

    NB: Image shows 2140 LItre version

    2140 Litre Bunded AdBlue EU Highway Bowser Specification

    • Product Code: TE
    • Made From: Steel
    • Suitable For Fuel: AdBlue
    • Tank Type: Bunded, Transportable
    • UN Certified / Approved for Transport under ADR: Yes

    2140 Litre Bunded AdBlue EU Highway Bowser Delivery Information

    Tanks:

    The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page.  Standard tank deliveries are "kerbside" which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.



    Tanks Over 2500L – Articulated Lorry – Customer Offload:

    These tanks will be delivered on an articulated vehicle (approximately 16.5m long x 2.6m wide x 3m high) which has no offloading on board, it is the customer's responsibility to offload the tank, which may require a telehandler / forklift.  Curtain sided vehicles are also used, so please note that if there are obstacles or hanging branches on the road to the delivery site etc, the driver may refuse to drive the vehicle to the customer's location due to the possibility of damaging the vehicle. Please let us know if there are any obstructions before delivery, so we can arrange alternative transport.



    18 Tonne Tail Lift HGV

    This vehicle is the size of the largest bin lorries (for comparison) and is approximately 8.2m long x 2.6m wide x 4m high, often curtain sided so please note that if there are hanging branches etc, these vehicles will not attempt to drive down due to the possibility of damaging the vehicle and so it is recommended that a smaller vehicle is requested. Tanks will be lowered to the ground but not positioned as this is a kerbside delivery.  If a smaller vehicle is required, please email us at sales@fueltankshop.co.uk quoting your order number and name.



    HIAB Delivery

    HIAB delivery is available but must be requested and there will be an additional cost for this service. If a HIAB delivery is required, please email us at sales@fueltankshop.co.uk quoting your order number and name, and we will come back to you with a price for this service.



    Accessories:

    Most accessories will be delivered within 1-3 working days (certain products and postcodes may take longer, please check the product page for update to date information). If you require them quicker, we can on occasions offer a next day service (please contact us to discuss). If the item(s) are out of stock, we will advise you of the expected lead time, and you will of course have the opportunity to cancel with a full refund.





    2140 Litre Bunded AdBlue EU Highway Bowser Returns Information

    Customers may return items within 14 calendar days (as per our Terms & Conditions) - refer to section 7. **

    All Items must be returned unused, refunds cannot be issued for used or previously installed items.

    Please be aware that returning a tank can be complicated and expensive, so please check that you are ordering the correct item (we suggest checking the dimensions very carefully).

    If you wish to return goods, please complete the form on this page to provide further information.

    Once your request is approved, a valid Returns Authorisation Number (RAN) will be issued to initiate the returns process along with information on how & where to return your order along with any costs involved.

    Please DO NOT return any goods without this authorisation. Goods cannot be accepted without this.

    Returns are not accepted at our Minehead Office, please wait until we contact you before returning any goods.

    View Fuel Tank Shop return policy now.
