PRODUCT REF · FHC-3000L
Dymac Fuel Hub Compact 3000 Litre Diesel Tank ADR Approved
Dymac Fuel Hub Compact 3000 Litre Diesel Tank ADR Approved
- Diesel
- Gas Oil
- HVO
- Steel
- Bunded
- 5 Year Warranty
Estimate delivery costs
Your postcode lets us show accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it isn't stored or shared.
Couldn't load pickup availability

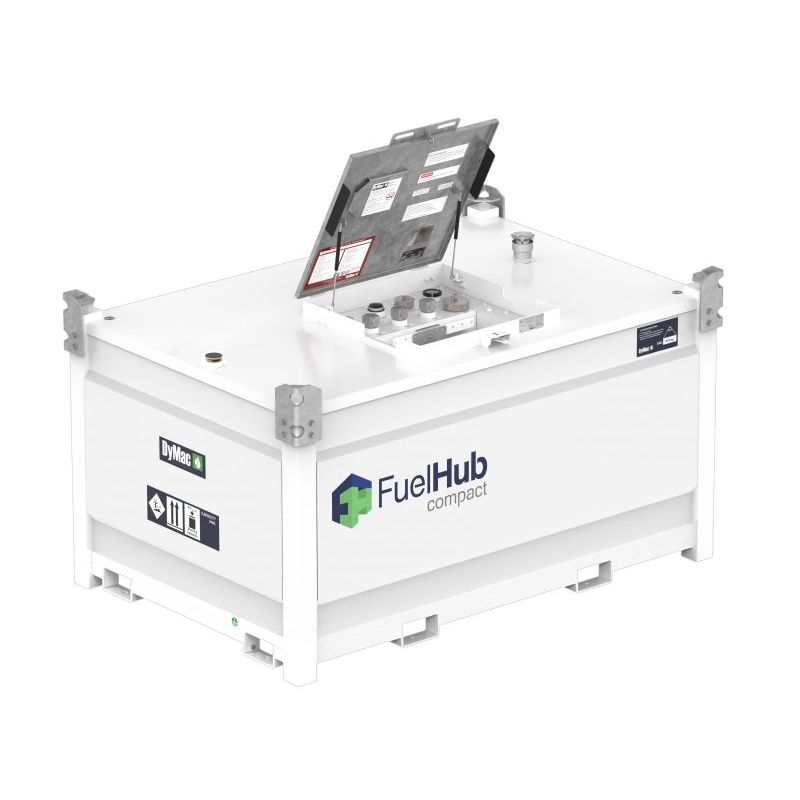

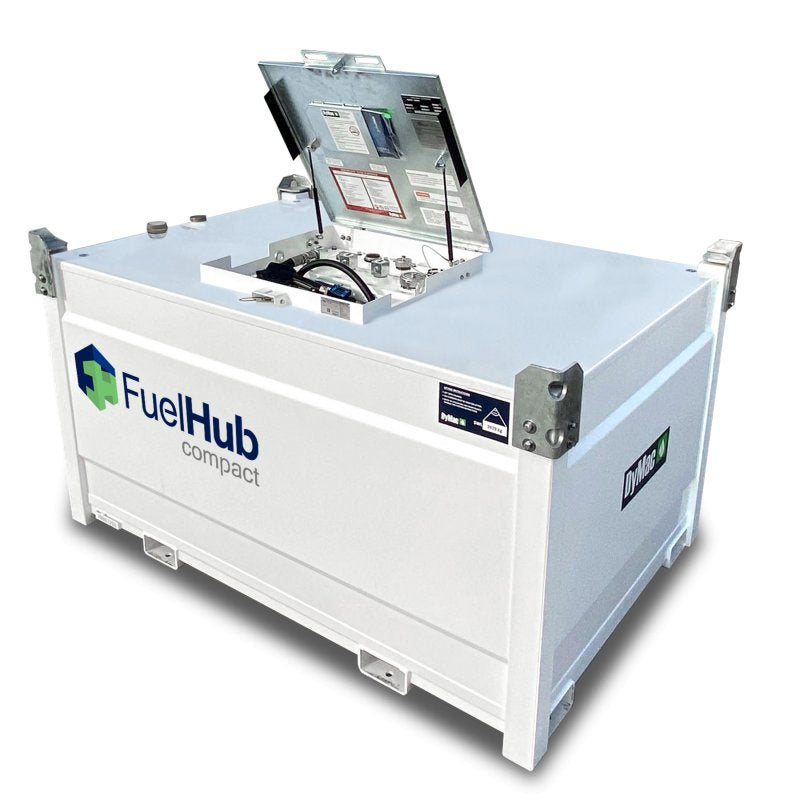

Dymac Fuel Hub Compact 3000 Litre Diesel Tank - Transportable - ADR / UN Approved
The Dymac Fuel Hub Compact 3000 litre steel bunded diesel tank is designed for the safe and secure storage of diesel and HVO fuel and comes with a galvanized hatch lid and four galvanized stacking corners
The innovative design allows the hatch lid to open up to conveniently positioned fitting ports
Complete with bi-directional fork-lift pockets
Fully transportable and UN & ADR compliant made from 4mm steel on the inner and outer tanks
110% integrally bunded
High grade paint finish - powder coated resulting in a longer lasting finish.
Designed for direct generator connections or with the optional 12v pump you can dispense fuel
Please choose option for diesel pump if required:
- 12v 56lpm pump supplied with 1" suction hose c/w camlock device, mounting bracket, 2m cable c/w crocodile clips, water and particulate filter, 4m x 3/4" delivery hose and automatic nozzle with swivel
- K2 Semi Rotary Hand Pump c/w 1" suction hose with foot valve, 4m 3/4" delivery hose, manual nozzle, pump bracket and fittings (PLEASE NOTE THAT THIS OPTION WOULD BE MOUNTED ON A BRACKET OUTSIDE THE CABINET)
- 230v 56lpm supplied with 1 x 1.5m 1” Suction Hose with Cam-Lock device, inline water and particle filter, 4m hose and auto nozzle
Standard Specification:
- 2" interstitial vent
- 2" spare socket
- 2" vent
- 3" socket
- 3 x 2" socket
- 2" filler port
- 2" dip
- 3" spare socket
- 3 x 1.5" return socket
- 2"-1" socket
- 1" suction pipe & foot valve
- 2"-1/2" socket
- 1/2" suction pipe & foot valve
- Dimensions (l x w x h) 2294mm x 1546mm x 1270mm
- Empty Weight 1127kg
- Laden Weight 3810kg
- Total Capacity 3000 litres (660 gallons)
- UN31 A/Y Compliant
Specifications
| Product Ref | DC |
|---|---|
| Volume (litres) | 3,000 |
| Length (mm) | 2,264 |
| Width (mm) | 1,516 |
| Height (mm) | 1,270 |
| Weight (kg) | 1,128 |
| Footprint (L+W) | 2264mm + 1516mm |
| Lead time (working days) | 12 |
Delivery Terms
The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page. Standard tank deliveries are "kerbside", which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.
Tanks over 2,500L — articulated lorry, customer offload
These tanks are delivered on an articulated vehicle (approximately 16.5m long × 2.6m wide × 3m high) which has no offloading on board. It is the customer's responsibility to offload the tank, which may require a telehandler or forklift.
Curtain-sided vehicles are also used, so please note that if there are obstacles or overhanging branches on the road to the delivery site, the driver may refuse to drive to the location due to the risk of damaging the vehicle. Please let us know about any obstructions before delivery so we can arrange alternative transport.
18-tonne tail-lift HGV
This vehicle is roughly the size of the largest bin lorries — approximately 8.2m long × 2.6m wide × 4m high, and often curtain-sided. If there are overhanging branches, these vehicles will not attempt the route, so a smaller vehicle should be requested.
Tanks are lowered to the ground but not positioned, as this is a kerbside delivery. If a smaller vehicle is required, email sales@fueltankshop.co.uk quoting your order number and name.
HIAB delivery
HIAB delivery is available but must be requested, and carries an additional cost. Email sales@fueltankshop.co.uk quoting your order number and name, and we'll come back to you with a price.
Accessories
Most accessories are delivered within 1–3 working days. Certain products and postcodes may take longer — check the product page for current information. If you need them sooner we can sometimes offer a next-day service; please contact us to discuss. If an item is out of stock we'll advise the expected lead time, and you're free to cancel for a full refund.
Returns Information
Customers may return items within 14 calendar days, as set out in section 7 of our Terms & Conditions.
All items must be returned unused. Refunds cannot be issued for used or previously installed items.
Please be aware that returning a tank can be complicated and expensive, so do check you're ordering the correct item — we strongly suggest checking the dimensions carefully before you buy.
How to return an item
- Complete the form on our returns page with details of your order.
- Once your request is approved, we'll issue a Returns Authorisation Number (RAN) along with instructions on how and where to return your order, and any costs involved.
- Please do not return any goods without this authorisation. Goods cannot be accepted without a valid RAN.
- Returns are not accepted at our Minehead office. Please wait until we contact you before returning anything.
Downloadable Documents
- No documents available for this product.
