PRODUCT REF · ACV-950L
Dymac AceCube Versatile ADR 950 Litre Diesel Tank
Dymac AceCube Versatile ADR 950 Litre Diesel Tank
- Diesel
- Gas Oil
- HVO
- Steel
- Bunded
Estimate delivery costs
Your postcode lets us show accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it isn't stored or shared.
Couldn't load pickup availability

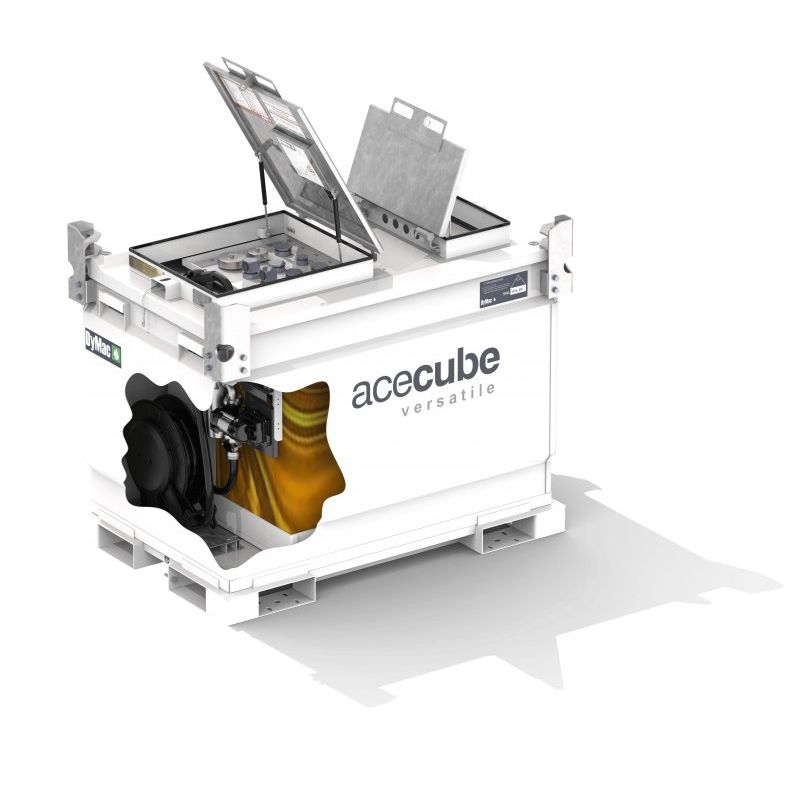

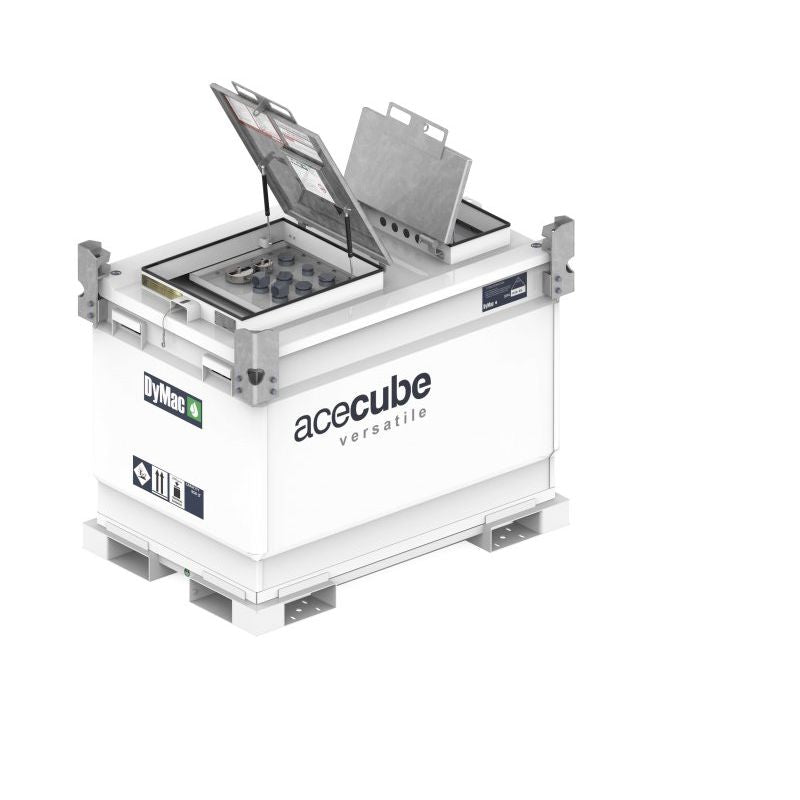

Dymac AceCube Versatile 950 Litre ADR Approved Diesel Tank
The Dymac AceCube Versatile 950 Litre is designed for the safe and secure transport and storage of diesel and HVO fuel and comes with galvanised hatch lids and four galvanised stacking corner for robust handling.
- The dual hatch design features a primary hatch that opens to the ports and fittings plate and a secondary hatch for added accessibility.
- Complete with bi-directional forklift pockets
- Fully transportable and UN and ADR compliant, made from 3mm steel on the inner and outer tanks.
- Integrally bunded
- Stackable - 3 high when empty and 2 high when full
- Designed for direct generator connections or with an optional 12v/110v/230v/K2 semi rotary hand fuel dispensing pump kit
- Features a spacious equipment compartment designed to accommodate a hose reel up to 10m long
- 3 year Warranty on steel integrity (for further warranty information, please refer to the operations and warranty manual).
- Dimensions: Length 1643mm x Width 1099mm x Height 1296mm
- High grade paint finish
Pump Options:
- K2 hand pump supplied with 1.5m x 1" suction hose c/w camlock device, 4m x 1" delivery hose and hose adaptor and manual nozzle
- 12v 56lpm pump supplied with 1.5m x 1" suction hose c/w camlock device, mounting bracket, 2m cable c/w crocodile clips, water and particulate filter, 4m x 3/4" delivery hose and automatic nozzle with swivel
- 230v 56lpm supplied with 1 x 1.5m 1” Suction Hose with Cam-Lock device, inline water and particle filter, 4m hose and auto nozzle
Standard Specification:
- Inner and outer tanks constructed from 3mm steel
- Capacity 916 litres
- Sale fill level 870 litres
- ADR and UN31 A/Y compliant
- Certified to be lifted when full
- Unladen weight 513kg
- Laden weight 1253kg
- Feed - 1 1/2“BSP pipe block with 1” port & galvanized metal stopper, 1” feed MS downpipe, HDPE NRV & 1 1/2” internal threaded coupling
- 2 X 1 1/2” BSP pipe block with 1/2” port & galvanized metal stopper, 1/2” feed MS downpipe with HDPE NRV & 1 1/2” internal threaded coupling
- Return – 1 1/2” BSP pipe block with 1/2” port & galvanized metal stopper, 1 1/2” internal threaded coupling
- Fill- 3” BSP galvanized external threaded pipe with 3” BSP fusible cap
- Level gauge – 1 1/2” BSP internal threaded coupling with level gauge
- Fill vent - 2” BSP galvanized threaded pipe with 2” BSP cap
- Pressure vent – 2” NPT internal threaded coupling with 2” pressure vent
- Emergency vent – 1/4” BSP internal threaded coupling with 1/4” emergency vent (Actuant)
- Pump Anti-Syphon – 1/8” BSP internal threaded coupling with 1/8” MS galvanized plug
- Spare - 2” BSP internal threaded coupling with 2” MS galvanized plug
- Spare – 1 1/2” BSP internal threaded coupling with 1 1/2” MS galvanized plug (for ACP-2000L & higher capacity up)
Specifications
| Product Ref | DC |
|---|---|
| Volume (litres) | 950 |
| Length (mm) | 1,643 |
| Width (mm) | 1,099 |
| Height (mm) | 1,296 |
| Weight (kg) | 606 |
| Lead time (working days) | 12 |
