PRODUCT REF · ACC-900L
Dymac AceCube Compact UN Approved 900 Litre Diesel Tank
Dymac AceCube Compact UN Approved 900 Litre Diesel Tank
Estimate delivery costs
Your postcode lets us show accurate delivery costs before you add to basket. We use it only to calculate shipping rates — it isn't stored or shared.
Couldn't load pickup availability
Dymac AceCube Compact UN Approved 900 Litre Diesel / HVO Tank

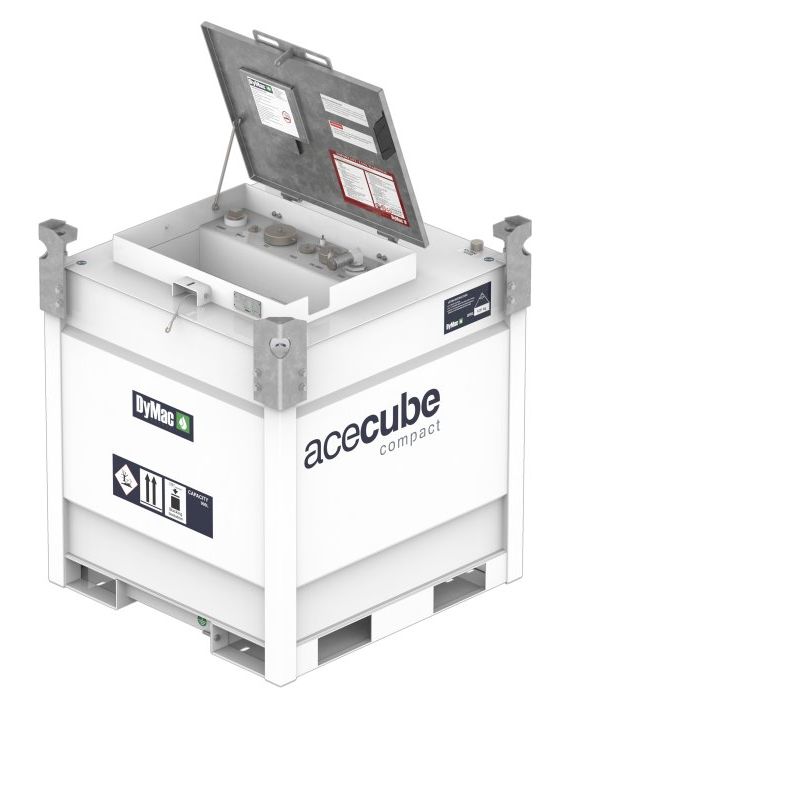

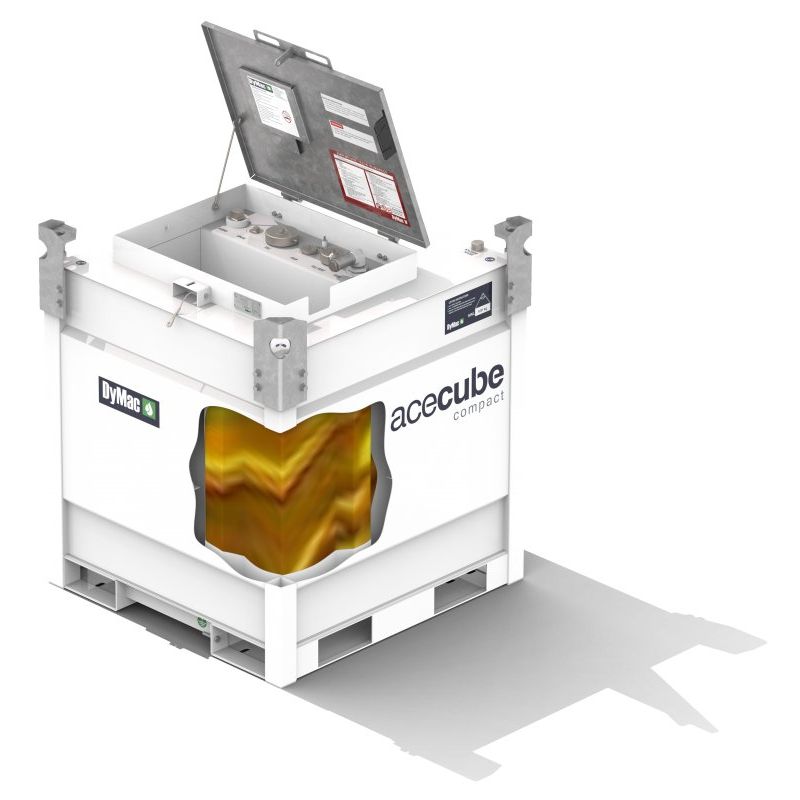

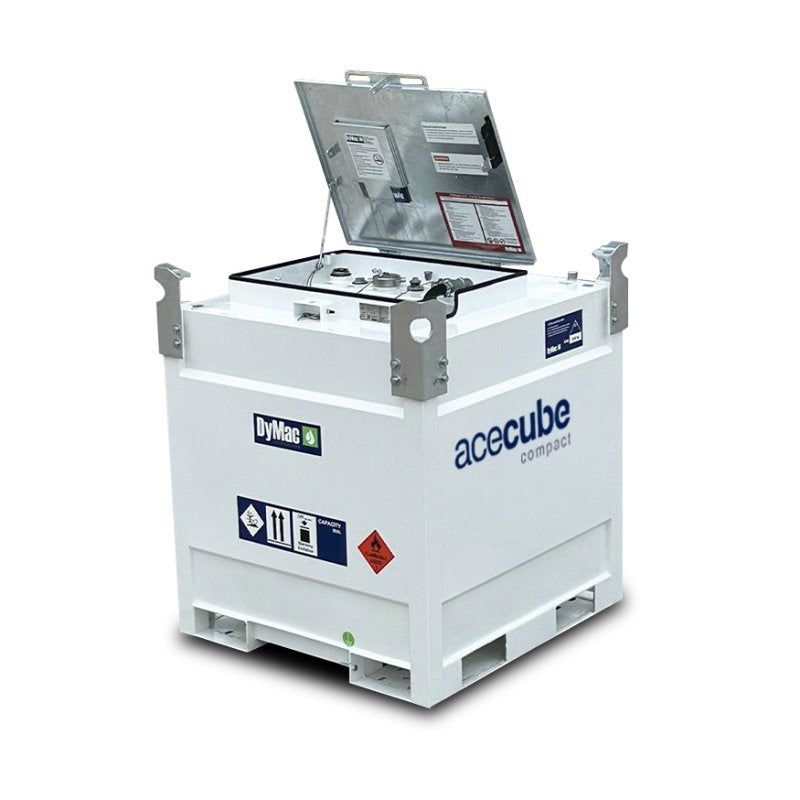

The Dymac AceCube Compact 900 litre is an IBC transportable fuel storage tank with a 110% bund and comes with a galvanized hatch lid and four galvanized stacking corners

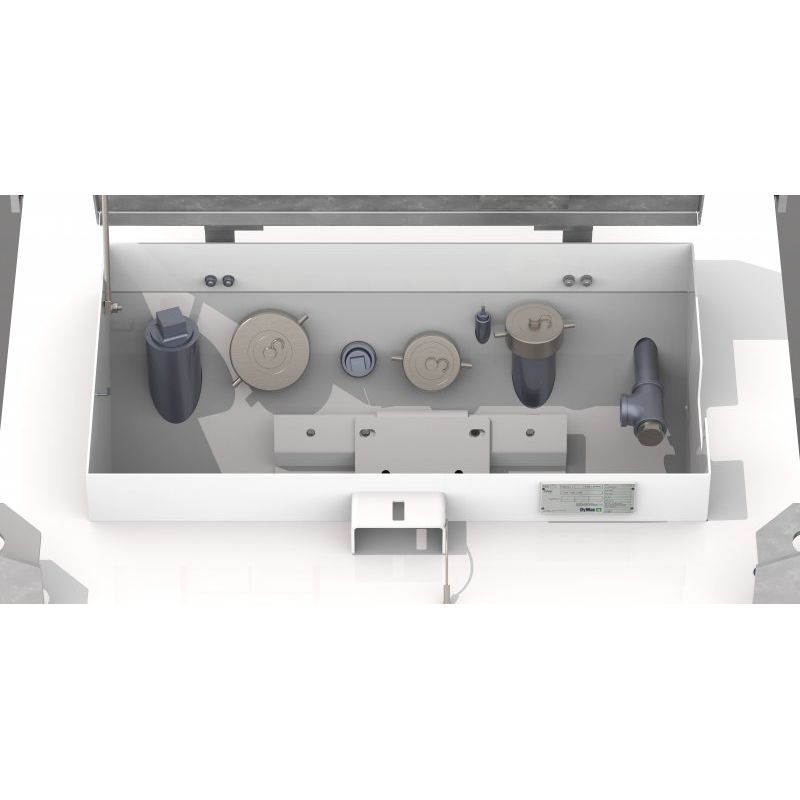

The innovative design allows the hatch lid to open up to conveniently positioned fitting ports
Complete with bi-directional fork-lift pockets
High grade paint finish
Inner and outer tanks are 2mm steel
Tank is available with optional pump:
12v 56lpm pump supplied with 1.5m x 1" suction hose c/w camlock device, mounting bracket, 2m cable c/w crocodile clips, water and particulate filter, 4m x 3/4" delivery hose and automatic nozzle with swivel
Standard Specification:
- Feed - 1.5" BSP pipe block with 1" port & metal stopper, 1" feed downpipe & 1.5" internal threaded coupling
- Feed - 1.5" BSP pipe block with 1/2" port & metal stopper, 1/2" feed downpipe & 1.5" internal threaded coupling
- Fill - 3" BSP external threaded pipe with 3" BSP fusible cap
- Level Gauge -1.5" BSP internal threaded coupling with level gauge
- P.Vent - 2" NPT internal threaded coupling with pressure vent
- E.Vent - 1/4" BSP internal threaded coupling with E Vent
- Spare - 1.5" BSP internal threaded coupling with 1.5" plug
- Fill Vent - 2" BSP external threaded pipe with 2" BSP cap
- Spare - 2" BSP internal threaded coupling with 2" plug
- UL Vent - 5" BSP internal threaded coupling with 5" plug
- Pump Antisiphon - 1/8" BSP internal threaded coupling with 1/8" plug
- Dimensions (l x w x h) 1190mm x 1150mm x 1296mm
- Empty Weight 402kg
- Laden Weight 1086kg
- Total Capacity 900 litres (200 gallons)
- Safe Fill Level 804 litres

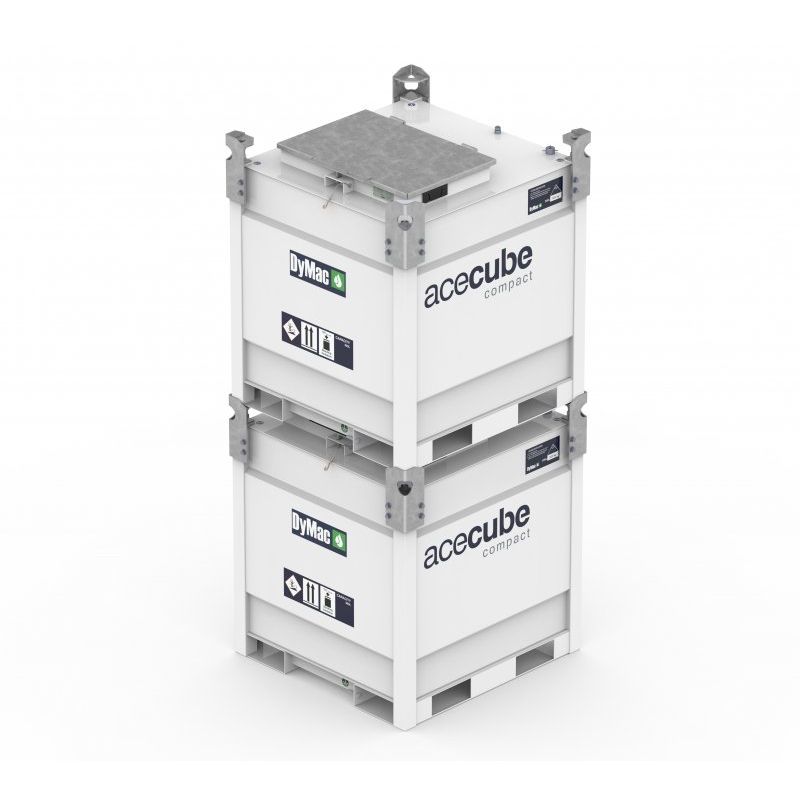

- Stackable 2 high when filled with fuel and 3 high when empty
- UN3 A/Y Compliant
- Lift when full
- Vibration tested
- CE marked
Specifications
| Product Ref | DC |
|---|---|
| Volume (litres) | 900 |
| Length (mm) | 1,190 |
| Width (mm) | 1,150 |
| Height (mm) | 1,296 |
| Weight (kg) | 402 |
| Footprint (L+W) | 1190mm + 1150mm |
| Lead time (working days) | 12 |
Delivery Terms
The delivery of a tank can be confusing as each manufacturer offers a slightly different service and lead time. Please refer to our Delivery Information page. Standard tank deliveries are "kerbside", which means the tank will be delivered to the kerb only and not positioned further. Should you have specific delivery requirements or restrictions, please contact us to discuss.
Tanks over 2,500L — articulated lorry, customer offload
These tanks are delivered on an articulated vehicle (approximately 16.5m long × 2.6m wide × 3m high) which has no offloading on board. It is the customer's responsibility to offload the tank, which may require a telehandler or forklift.
Curtain-sided vehicles are also used, so please note that if there are obstacles or overhanging branches on the road to the delivery site, the driver may refuse to drive to the location due to the risk of damaging the vehicle. Please let us know about any obstructions before delivery so we can arrange alternative transport.
18-tonne tail-lift HGV
This vehicle is roughly the size of the largest bin lorries — approximately 8.2m long × 2.6m wide × 4m high, and often curtain-sided. If there are overhanging branches, these vehicles will not attempt the route, so a smaller vehicle should be requested.
Tanks are lowered to the ground but not positioned, as this is a kerbside delivery. If a smaller vehicle is required, email sales@fueltankshop.co.uk quoting your order number and name.
HIAB delivery
HIAB delivery is available but must be requested, and carries an additional cost. Email sales@fueltankshop.co.uk quoting your order number and name, and we'll come back to you with a price.
Accessories
Most accessories are delivered within 1–3 working days. Certain products and postcodes may take longer — check the product page for current information. If you need them sooner we can sometimes offer a next-day service; please contact us to discuss. If an item is out of stock we'll advise the expected lead time, and you're free to cancel for a full refund.
Returns Information
Customers may return items within 14 calendar days, as set out in section 7 of our Terms & Conditions.
All items must be returned unused. Refunds cannot be issued for used or previously installed items.
Please be aware that returning a tank can be complicated and expensive, so do check you're ordering the correct item — we strongly suggest checking the dimensions carefully before you buy.
How to return an item
- Complete the form on our returns page with details of your order.
- Once your request is approved, we'll issue a Returns Authorisation Number (RAN) along with instructions on how and where to return your order, and any costs involved.
- Please do not return any goods without this authorisation. Goods cannot be accepted without a valid RAN.
- Returns are not accepted at our Minehead office. Please wait until we contact you before returning anything.
Downloadable Documents
- No documents available for this product.
