Pumptronics ALPHA FC10 Fuel Management System
Product Ref: ALPHA/70AFC / ALPHA/90AFC
Home Delivery
United Kingdom mainland delivery from FREE ex VAT
Free Parcel Delivery (Highlands & Islands are charged a higher fee than standard)
You may also need:
![FC10/FC20 FMS Data tag 1 Per Vehicle / Driver](/images/products/thumbs/8932_6077.jpg)
![Slimline ZVA Fuel Pump Nozzle](/images/products/thumbs/1357_4505.jpg)
![ZVA 25 High Speed Fuel Pump Nozzle](/images/products/thumbs/1360_3244.jpg)
![Professional Automatic Diesel Nozzle](/images/products/thumbs/8299_4504.jpg)
![Professional Automatic Diesel Nozzle - High Speed](/images/products/thumbs/8462_4949.jpg)
Pumptronics ALPHA FC10 Fuel Management System Description

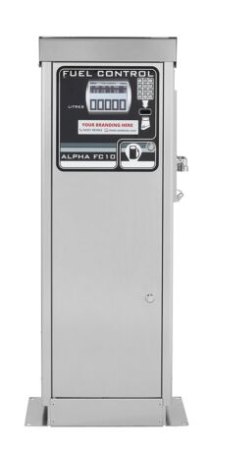

Pumptronics ALPHA FC10 Fuel Management System
Please Note: All FC10 units must include the following at an additional cost:
- ALPHA FC10 4G modem assembly
- FC10/FC20 web-based software
- Remote commissioning for the ALPHA FC10
- Data tags
Key Features:
- Come supplied with 3m steel braided hose. Nozzle is not included.
- 230v ALPHA diesel, HVO pump dispenses at 70lpm or 90lpm depending on option selected.
- Uses virtually indestructible data tags instead of keys or cards.
- The data tag is a short-range proximity device. it's 100% sealed plastic unit that is durable & hard-wearing. There are no moving parts, no teeth to break or slots & grooves to wear or block.
- Up to 65,000 different data tags on any one system.
- Vehicle tags, odometer entry, odometer check & MPG calculation.
- Optional driver code &/ or pin code entry
- Flexible report writer enables a wide range of fuel usage analysis by vehicle, department, vehicle type, fuel type, time, date etc.
- Multiple site capability & data consolidation.
- All features included as standard.
- Meter accuracy +/-0.25%
- Clear backlit, easy to read LCD display.
- Lifetime & period totalisers are displayed constantly.
- leave message for specific drivers.
- Large display digits for fuel being drawn.
- Can be used with above or below ground tanks.
- Stores full information on the last 2000 refuelling operations.
- Modem allows for remote diagnostics & support.
- Modem provides wireless communication between pump & PC
Pumptronics ALPHA FC10 Fuel Management System Specification
- Product Code: HY
- Guarantee: 2 Year Guarantee
- Suitable For Fuel: Diesel, Bio Fuel
